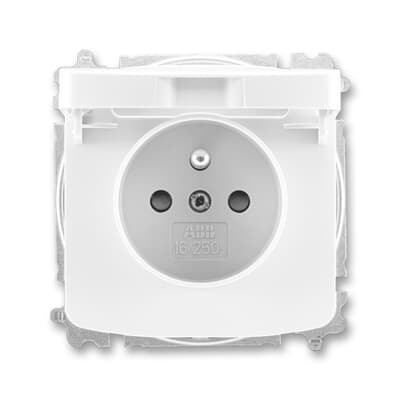

2CHA196397A4500
Part Number: 2CHA196397A4500
Product Information
Extended Description

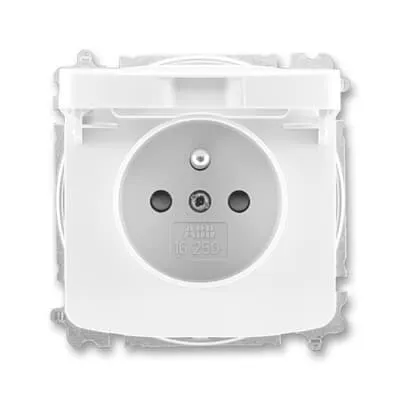

2CHA196397A4500 ABB: Screwless terminals. Fixation via screws only. IP 40 16 A, 250 V AC
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Environmental Product Declaration - EPD
EPD R60 Earth-pin single socket outlet 6619
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50 ... 50 Hz
Model Number
CSN-Norm
Number of Phases
1
Number of Active Pin Terminals
2
Number of Gangs
1
Protection Cap Type
Hinged Lid
Design Range
Tango
Connection Type
Plug Clamp
Mounting Type
Flush mounted (plaster)
Socket Outlet Type
Protective Contact (SCHUKO)
Type of Fastening
Mounting with Screw
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 9003 - Signal White
Color
white
Number of Batteries
0
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20210624
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f29d8b0a-9278-44f8-a438-a832a41ff4fc Czech Republic (CZ)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP40
Short-Circuit Current Rating (SCCR)
0 A
Product Net Weight
64 g
Built-In Depth (t2)
40 mm
Package Level 1 Units
carton 10 piece
Package Level 1 Gross Weight
0 kg
Declaration of Conformity - CE
EU Declaration of Conformity Socket-outlet, flush type, pin-earth - 6619
ETIM 8
EC000125 - Socket outlet
ETIM 9
EC000125 - Socket outlet
