2CHA590694A4533
Part Number: 2CHA590694A4533
Product Information
Extended Description

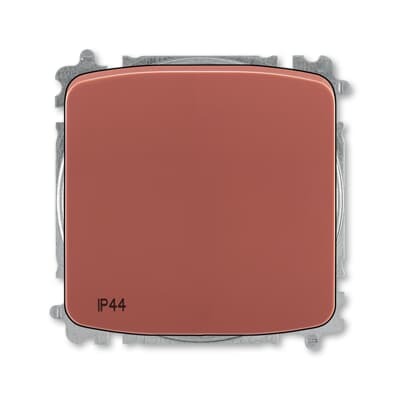

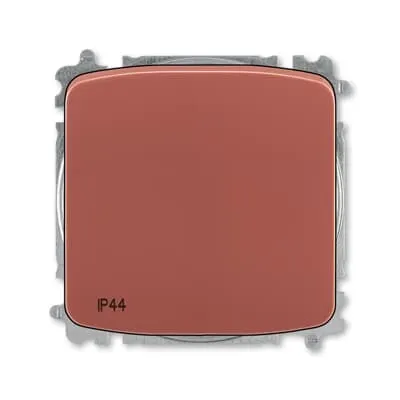

2CHA590694A4533 ABB: Desing Tango® , heather red color. Switch with rocker 1gang 2way with protection IP44 for standard frames up 3gang for vertical a horizontal installation.
Instructions and Manuals
2CHC700001M0101_installation manual_Tango IP44
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP44
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Design Range
Tango
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
red
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
82 g
Built-In Depth (t2)
22 mm
Replaced Product ID (OLD)
3559A-A06940 R2
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
