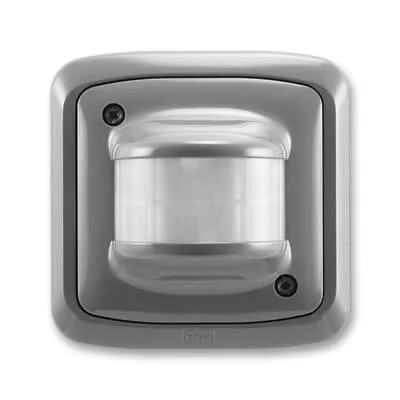

2CHA702214C4507
Part Number: 2CHA702214C4507
Product Information
Extended Description
2CHA702214C4507 ABB: Switching element: relay Detection angle: approx. 180° (1 plane – see page 294) Adjustable values (on the back of the cover): – lighting threshold (1 - 1000 lx) – sensor sensitivity – switch-off delay (5 sec - 10 min) Degree of protection: IP 44 Operating temperature: –25 °C to +55 °C The supply includes sealing collar to protect terminals and the frame with sealing gasket. Cannot be installed in a multiple frame. 2300 W for Incandescent lamp, 1750 V·A for Conventional transormer,Electronic transformer 44), 500 V·A / 64 μF for Fluorescent lamp 3-wire connection 230 V AC
Mounting Type
Flush Mounted
Mounting Height
Optimum 1.5 m
Degree of Protection
IP44
Minimum Switching Time
Switch-On 5 second [unit of time]
Connection Type
Screw
Sensor Type
Passive infrared
Illuminance
1...1000 lx
Battery Weight
0 g
Number of Batteries
0
Sensor Detection Range
Horizontal -90...90 °
Rated Voltage (Ur)
230 V
Input Voltage Type
AC
Frequency (f)
50...50 Hz
Rated Frequency (f)
50 ... 50 Hz
Maximum Switching Power
2300 W
Design Range
Tango
Surface Finishing
Untreated | Glossy
Material
Material quality: Thermoplastic | Material: Plastic
Color
grey
Product Net Weight
155 g
Built-In Depth (t2)
33 mm
Replaced Product ID (OLD)
000000001000384424
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000133 - Movement sensor/presence detector complete
