2CHH192397A4003
Part Number: 2CHH192397A4003
Product Information
Extended Description

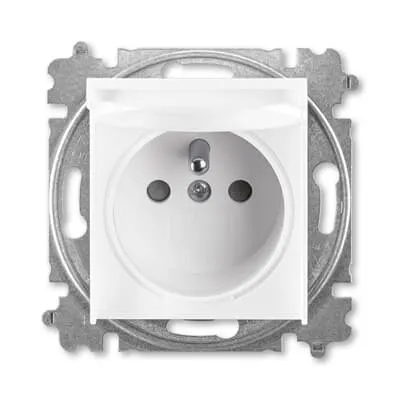

2CHH192397A4003 ABB: Single socket outlet with lid
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP40
Number of Phases
1
Number of Gangs
1
Connection Type
Plug Clamp
Socket Outlet Type
CSN - Norm
Protection Cap Type
Hinged Lid
Short-Circuit Current Rating (SCCR)
Class K5 0 A
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Rated Frequency (f)
50 ... 50 Hz
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
white
Product Net Weight
70 g
Built-In Depth (t2)
23.2 mm
Replaced Product ID (OLD)
5519H-A02397 03
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Comformity for 5519
ETIM 9
EC000125 - Socket outlet
