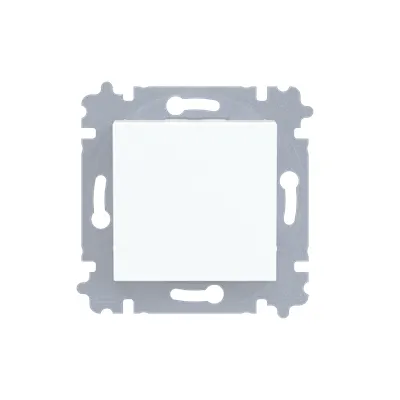

ABB 2CHH590145A6001 Flush Mounted Rocker Switch - IP20
Part Number: 2CHH590145A6001
Quick Summary
ABB 2CHH590145A6001 Flush Mounted Rocker Switch provides reliable on/off control for 1‑gang installations in industrial panels. Engineers often struggle with mounting depth and clean panel aesthetics, and this flush design addresses both by delivering a compact, accessible control that sits neatly within the enclosure. The device carries CE conformity, RoHS and REACH declarations, plus an IP20 rating for indoor dry environments, supporting regulatory compliance and safe operation. Designed for Levit-style enclosures and plug-clamp wiring, it delivers predictable performance, minimal maintenance, and a straightforward replacement path, helping you reduce downtime and total cost of ownership while maintaining professional panel aesthetics.
Product Information
Extended Description
2CHH590145A6001 ABB: Switch 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
white
Product Net Weight
71.14 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590145A6001
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: The flush mounted mounting type saves panel space and simplifies integration in tight control cabinets, enabling faster assembly and cleaner layouts in 1‑gang machines and conveyors. This translates to measurable time savings during panel builds and easier future retrofits for production lines with constrained footprints. Feature → Business Impact → Application: Off switch 1-pole wiring with a plug clamp connection reduces wiring complexity and risk of loose contacts, improving reliability in routine start/stop operations across automated equipment. Users can deploy this in general machine control panels and remote switch stations with confidence in secure electrical connections. Feature → Business Impact → Application: IP20 protection provides reliable indoor operation against finger contact and dust ingress, which supports compliance in dry industrial environments and minimizes field service calls for basic enclosure contamination. Feature → Business Impact → Application: Thermoplastic material, Levit design, and white color deliver durable, vibration-resistant performance with easy replacement in standard 1‑gang faceplates, promoting consistent aesthetics across legacy and new installations. Feature → Business Impact → Application: Non-illuminated operation reduces power draw and eliminates unnecessary light leakage in machine rooms, lowering energy costs and avoiding distraction in environments with high ambient lighting. Feature → Business Impact → Application: RoHS and REACH declarations plus CE compliance ensure regulatory alignment for multinational manufacturing, supporting supplier qualification and grid upgrades in sectors such as packaging, material handling, and automotive assembly.
Get a Quick Quote for a ABB 2CHH590145A6001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590145A6001?
Enquire Now
FAQs
This device is flush mounted and supports mounting with claw or screw fasteners, enabling a shallow installation that saves panel depth and keeps the front flush with the panel surface. In tight control panels, this reduces footprint, simplifies maintenance, and improves accessibility for wiring and replacements without compromising enclosure integrity.
The switch is rated for 250 V and 10 A in a 1-pole off configuration. It uses a plug clamp connection for quick, secure wiring, and is designed for non-illuminated operation in a 1‑gang, 1‑way setup, making it suitable for standard machine start/stop control in dry environments.
Yes. It carries RoHS and REACH declarations and a CE declaration of conformity, reflecting compliance with EU directives for materials and safety. These certifications support regulatory alignment when integrating into multinational manufacturing lines and supplier qualification processes.
Ideal for industrial control panels, machine panels, and compact distribution boards requiring a reliable 1‑gang, 1‑way rocker switch. Its Levit design, 17 mm built-in depth, and IP20 rating make it suitable for dry indoor installations like packaging lines, conveyors, and general automation equipment.
The combination of flush mounting, plug clamp wiring, and 1‑pole operation minimizes installation time and reduces rework during upgrades. Its compact depth and durable thermoplastic housing also simplify retrofits in existing faceplates and support long-term reliability in busy production environments.
