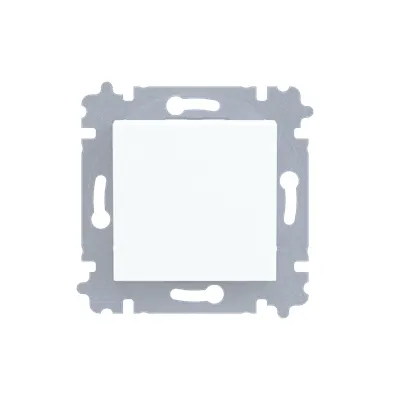

ABB 2CHH590145A6003 Flush Mounted Inserts Rocker Lever - CE
Part Number: 2CHH590145A6003
Quick Summary
ABB 2CHH590145A6003 is a flush mounted rocker switch insert for single-pole panel control. Design engineers often struggle with compact panel fit, wiring complexity, and ensuring regulatory compliance during upgrades. This device carries CE conformity, IP20 protection, and RoHS/REACH declarations to support European deployments. Its compact 17 mm built-in depth, plug clamp wiring, and 1-pole off-switch streamline installation, minimize labor, and improve long-term reliability in machinery panels. The Levit design and thermoplastic white housing align with standard control interfaces, helping manufacturers reduce SKUs and accelerate deployment.
Product Information
Extended Description
2CHH590145A6003 ABB: Switch 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
white
Product Net Weight
71.14 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590145A6003
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: Flush Mounted installation delivers a clean panel look, reducing snag hazards and contamination risk in crowded control cabinets, which translates to fewer maintenance calls and higher uptime in factory lines. Application: ideal for industrial control panels and machine enclosures where aesthetics and reliability matter. Feature → Business Impact → Application: 1 gang, 1 rocker switch with 1-pole off-switch simplifies wiring and reduces component count, cutting installation time and material costs on assembly lines. Application: used for start/stop controls in conveyors, presses, and automation cells. Feature → Business Impact → Application: Plug Clamp connection enables fast, secure terminations with consistent torque, speeding commissioning and lowering field service time. Application: panel installations that require quick swaps or maintenance. Feature → Business Impact → Application: Rated 250 V and 10 A with IP20 protection delivers dependable mains control in dry indoor environments, minimizing risk of miswiring and guarding panel integrity. Application: motor and lighting control in manufacturing and packaging lines. Feature → Business Impact → Application: RoHS/REACH and CE declarations ensure regulatory compliance across markets, reducing the need for separate certifications. Application: European machinery builds and line upgrades. Feature → Business Impact → Application: Thermoplastic, white housing with Levit design offers durable, cost-effective components compatible with ABB control families. Application: standardized interfaces across multiple machines for scalable automation projects.
Get a Quick Quote for a ABB 2CHH590145A6003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590145A6003?
Enquire Now
FAQs
This device is designed for flush mounted installation and can be mounted with either claws or screws. It uses a plug clamp connection for fast, secure terminations and accommodates a 1-gang, 1-pole wiring configuration, simplifying panel integration without sacrificing reliability.
The switch is rated for 250 V and 10 A with a 1-pole off-switch configuration. It is non-illuminated and uses a plug clamp connection, providing straightforward wiring and a robust, single-pole control solution for standard mains circuits in industrial panels.
Yes. It carries CE conformity and RoHS/REACH declarations, is IP20 protected for indoor dry environments, and aligns with European regulatory requirements, making it appropriate for European machinery and panel builds.
The 17 mm built-in depth, plug clamp wiring, and durable thermoplastic housing enable quick installation, easy field replacement, and consistent performance across lines. These factors reduce downtime, simplify spare part management, and support scalable automation strategies.
Yes. The design is compatible with the Levit family, providing a familiar, scalable control interface across multiple machines, which helps standardize panels, reduce SKUs, and accelerate deployment in automated facilities.
