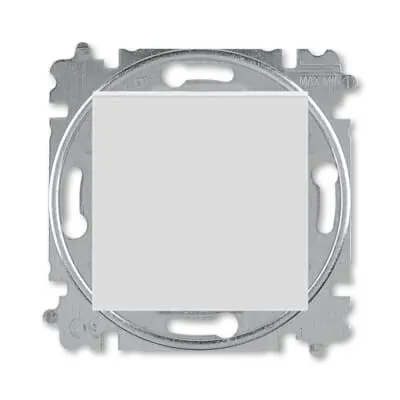

ABB 2CHH590145A6016 Flush Mounted Rocker Lever - IP20
Part Number: 2CHH590145A6016
Quick Summary
ABB 2CHH590145A6016 is a flush-mounted 1-gang rocker switch insert for control panels. Tight spaces and wiring complexity can slow projects and increase downtime, but this unit helps by providing compact, secure mounting in enclosed cabinets. It carries CE conformity, RoHS compliance, and an IP20 protection rating, ensuring safe operation in indoor environments. Designed for Levit design family compatibility with plug clamp wiring, it supports 250 V and 10 A, simplifying panel assembly and serviceability for routine maintenance and upgrades. This translates to faster commissioning, reduced error rates during installation, and lower lifecycle costs in automation projects. Its non-illuminated design minimizes distraction in bright industrial environments.
Product Information
Extended Description
2CHH590145A6016 ABB: Switch 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
grey
Product Net Weight
71.14 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590145A6016
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature is flush-mounted mounting with claw or screw fastening; Business impact is secure, vibration-resistant installation that reduces panel movement and wear; Application is tight-control panels in automation lines. Feature is 250 V rated voltage and 10 A current; Business impact is safe handling of standard machine loads with ample headroom and improved reliability; Application is motor-start and power-control circuits in industrial equipment. Feature is 1 gang, 1 rocker, 1-pole wiring configuration (Off); Business impact is simplified wiring, reduced enclosure depth, and quicker replacements; Application is compact control panels and lightweight machines. Feature is plug-clamp connection; Business impact is faster assembly, fewer loose connections, and lower field maintenance time; Application is panel assembly and service hubs. Feature is IP20, RoHS, REACH, CE compliance; Business impact is regulatory compliance, safer disposal, and reduced risk of non-conformance; Application is indoor electrical cabinets and compliant automation installations. The design also references the Levit product range for compatibility, ensuring seamless integration with existing installation standards and training materials, while the thermoplastic body offers durable yet lightweight construction for high-volume manufacturing environments.
Get a Quick Quote for a ABB 2CHH590145A6016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590145A6016?
Enquire Now
FAQs
This device is designed for flush-mounted installation and offers mounting with claw or screw fixation. The flush mounting reduces profile in enclosures, aiding panel density and service access while maintaining secure mounting in vibratory environments typical of industrial controls.
The switch insert is rated for 250 V and 10 A, configured as a 1-gang, 1-way OFF switch. The plug-clamp connection simplifies wiring, and the non-illuminated actuator reduces distraction in brightly lit plant spaces.
Yes. It carries IP20 ingress protection and is intended for indoor equipment. The CE and RoHS declarations, along with REACH compliance, ensure it meets essential safety, environmental, and regulatory requirements for panel-mounted control applications.
This product has CE conformity with EU Declaration of Conformity, RoHS compliance, REACH declarations, and WEEE categorization. It is designed to align with LEVIT design range expectations and European environmental standards for electrical components.
The plug-clamp wiring and 1-pole, 1-gang design reduce wiring time and field errors, accelerating commissioning. Its compact 17 mm depth supports higher panel density, while non-illuminated actuation minimizes power draws and potential failure points, contributing to lower maintenance costs and improved uptime.
