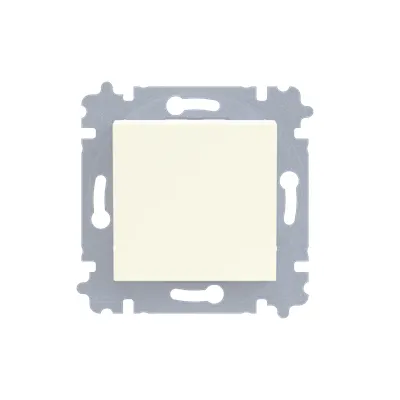

ABB 2CHH590145A6017 Flush Mounted Rocker - IP20
Part Number: 2CHH590145A6017
Quick Summary
ABB 2CHH590145A6017 Flush Mounted Rocker is a 1-pole, 1-gang switch for control panels. Engineers often struggle with panel mounting fit and reliable wiring in tight enclosures. Key certifications like CE conformity, RoHS compliance, and IP20 protection help ensure safe, durable operation in industrial environments. This product delivers a compact 17 mm built-in depth, plug clamp connection, and non-illuminated actuation. The thermoplastic housing supports rugged use and a clean panel appearance, while mounting with claws or screws simplifies retrofits and new builds. These features reduce installation time, minimize wiring errors, and improve maintenance predictability for automation cabinets, machine control, and process lines.
Product Information
Extended Description
2CHH590145A6017 ABB: Switch 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
cream white (electro white)
Product Net Weight
71.14 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590145A6017
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: 1-pole, 1-gang rocker design → Business Impact: simplifies control wiring and reduces footprint in crowded panels → Application: ideal for control panels in automation cabinets and machinery. Feature: Rated Voltage 250 V and Rated Current 10 A → Business Impact: handles common industrial loads with a safe margin → Application: switches lighting, motors, and general loads within industrial controls. Feature: IP20 protection → Business Impact: protects against finger access and incidental dust in indoor environments → Application: reliable operation inside factory enclosures and production lines. Feature: Flush mounted mounting type with claw or screw fastening → Business Impact: minimizes panel recess and improves aesthetics during retrofit or new builds → Application: space-constrained panels in packaging, textile, and process automation. Feature: Plug Clamp wiring connection → Business Impact: enables quick, repeatable terminations and reduces wiring errors → Application: efficient installations in new builds and upgrade projects. Feature: Non-illuminated actuator → Business Impact: lower maintenance risk and simpler diagnostics in unlit control environments → Application: general-purpose control where indication is not required. Feature: Built-in depth of 17 mm → Business Impact: enables dense panel layouts and easier rear clearance planning → Application: compact control cabinets across production lines. Feature: Design Range Levit and Thermoplastic housing → Business Impact: consistent with ABB Levit family and durable under industrial temperatures → Application: seamless integration in modular automation setups and standardized enclosures.
Get a Quick Quote for a ABB 2CHH590145A6017
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590145A6017?
Enquire Now
FAQs
Installation starts with preparing a flush-mount cutout for a 1-gang, 1-pole rocker switch. Use either the claw or screw fastening options to secure the device, then connect wiring via the plug clamp terminals. Verify IP20 protection and ensure no illumination elements are required for your panel. The 17 mm built-in depth supports tight rear clearances and helps maintain a neat, reliable enclosure.
The device is rated for 250 V and 10 A, suitable for general control circuits and lighting loads within panels. The maximum switching current for typical fluorescent lighting applications is 10 A, providing a safe margin for common industrial loads. Always ensure your load profile stays within these limits to maintain reliability.
Yes. The product carries CE Declaration of Conformity and RoHS compliance, with REACH considerations addressed. It is designed for European industrial environments, aligning with EU directives on restricted substances and product safety. This helps ensure regulatory compatibility for panel assemblies in manufacturing facilities.
Absolutely. The design range Levit pairing supports integration in Levit-based control cabinets and standard automation enclosures. Its flush-mounted form, plug clamp wiring, and non-illuminated operation make it a practical fit for compact automation panels where a clean, space-efficient control element is required.
The thermoplastic housing and robust, non-illuminated design reduce potential failure points and simplify diagnostics. Its IP20 rating provides indoor protection against incidental dust and touch, while the compact 17 mm depth facilitates denser panel layouts and easier retrofits, contributing to lower maintenance costs and longer system uptime.
