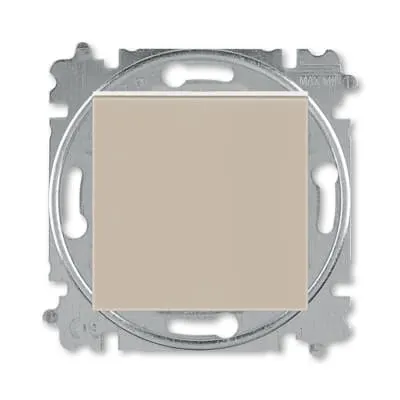

ABB 2CHH590145A6018 1-Gang Rocker Switch - IP20 CE
Part Number: 2CHH590145A6018
Quick Summary
ABB 2CHH590145A6018 is a flush-mounted 1-gang rocker switch for 250 V control circuits. In crowded control panels, precise mounting and reliable wiring can slow commissioning. This device features IP20 protection and CE conformity, along with RoHS and REACH declarations to support compliance. The compact design minimizes panel space while delivering robust mechanical action. Its plug clamp connection and 17 mm built-in depth simplify installation, reducing labor time and field errors. For OEMs and service teams, the combination of mounting versatility and regulatory compliance translates to lower installation risk and predictable maintenance.
Product Information
Extended Description
2CHH590145A6018 ABB: Switch 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
brown
Product Net Weight
71.14 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590145A6018
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Flush-mounted mounting type with a 1-gang, 1-rocker configuration reduces panel intrusion and delivers a clean front fascia for quick diagnostics in dense control cabinets. Business impact: faster commissioning and easier retrofit in automation panels. Application: ideal for panel-mounted control in industrial environments. Feature: Wiring uses a Plug Clamp connection with a 1-pole off configuration, enhancing termination reliability and reducing field wiring errors. Business impact: lowers installation time and risk of loose connections in high-vibration environments. Application: suitable for OEM equipment and panel builds requiring robust terminations. Feature: Electrical ratings of 250 V and 10 A with IP20 protection provide safe operation for standard control circuits. Business impact: regulatory compliance and predictable switching performance across loads such as fluorescent lighting up to 10 A. Application: ideal for machine control and cabinet wiring. Feature: Thermoplastic housing in brown, built-in depth of 17 mm, and a weight of 71.14 g support compact enclosure designs and easier replacement. Business impact: reduced panel footprint and simpler inventory management. Application: fits tight spaces and aligns with compact automation components. Feature: RoHS, REACH, and CE declarations plus ETIM 9 classification ensure lifecycle compliance and easy sourcing. Business impact: lowers compliance risk and simplifies supplier qualification. Application: suitable for standardized manufacturing environments and modernization projects.
Get a Quick Quote for a ABB 2CHH590145A6018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590145A6018?
Enquire Now
FAQs
Mount the device flush into the panel opening and secure it using either claws or screws as allowed by the mounting method. The 17 mm built-in depth keeps the front apparatus compact, while the 1-gang, 1-rocker configuration ensures a clear, single-actuator interface. Use the plug clamp connection to terminate conductors to standard sizes, ensuring a robust, vibration-tolerant termination that reduces field wiring errors during commissioning.
The switch is rated for 250 V and 10 A, suitable for typical control circuits in automation and panel wiring. It supports a 1-pole off configuration and has a maximum switching capability that accommodates common loads, including fluorescent lighting up to the 10 A mark. Non-illuminated operation keeps optical clarity for panel indicators and reduces bleed current concerns.
Yes. The device carries an IP20 rating, delivering protection against solid objects larger than 12.5 mm and providing safe operation in dry indoor electrical installations such as control panels and machine enclosures. For higher protection environments, consider additional enclosure protection or alternative products with elevated IP ratings.
The switch conforms to CE declarations and RoHS/REACH requirements, with a EU Declaration of Conformity (3559). It is registered under ETIM 9 as EC001590 - Installation switch, and falls within WEEE Category 5 for small equipment. These certifications support regulatory compliance, end-of-life handling, and supplier qualification in regulated industrial environments.
The 2CHH590145A6018 offers a compact, plug-friendly wiring solution with a 1-pole off configuration that reduces field wiring time and error rates. Its small footprint (17 mm depth) and moderate weight (71.14 g) minimize panel space and inventory complexity, while CE, RoHS, and REACH compliance help ensure regulatory readiness for OEM deployments and maintenance cycles.
