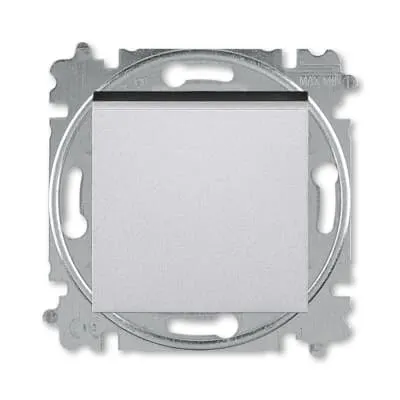

ABB 2CHH590145A6070 Flush Mounted Rocker Switch - IP20
Part Number: 2CHH590145A6070
Quick Summary
ABB 2CHH590145A6070 is a compact flush-mounted rocker switch designed for 1-gang, 1-way control in industrial panels. Engineers often struggle with mounting depth and wiring access in confined control boxes. Certified for CE and RoHS, IP20-rated for indoor use, and designed for quick plug-clamp wiring. By pairing this switch with ABB Levit panels, you gain reliability, ease of installation, and scalable lifecycle cost reductions. The device supports 250 V and 10 A loads with a robust, non-illuminated actuation suitable for panel-mounted controls. Its compact 17 mm built-in depth and 71.14 g weight help maximize panel real estate while meeting RoHS/REACH obligations in modern manufacturing environments.
Product Information
Extended Description
2CHH590145A6070 ABB: Switch 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Lacquered | Matt
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
titanium
Product Net Weight
71.14 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590145A6070
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature Mounting Type Flush Mounted → Business Impact A neat, low-profile panel footprint reduces enclosure size and simplifies panel design, enabling faster assembly and tighter equipment layouts. Application 1-gang, 1-way control in machine panels and control consoles. Feature Wiring Configuration Plug Clamp → Business Impact Quick, secure wiring minimizes installation time and fabrications costs. Application 1-pole off-switch control for dependable start/stop operations. Feature Electrical Rating 250 V, 10 A → Business Impact Supports common lighting and control circuits with a safe operating margin, improving reliability and reducing need for auxiliary contactors. Application Lighting and auxiliary loads in manufacturing lines. Feature Mechanical Build Thermoplastic housing with lacquered matt titanium finish → Business Impact Durable, corrosion-resistant surface that resists wear in demanding environments, lowering replacement cycles. Application Front-panel visibility and long-term aesthetics in industrial enclosures. Feature Built-in Depth 17 mm → Business Impact Slim profile preserves panel space and reduces mount interference. Application Suitable for compact control stations. Feature Compliance RoHS, REACH, CE, ETIM EC001590, WEEE → Business Impact Regulatory peace of mind, easier supplier qualification, and sustainable end-of-life handling. Application Compliance-heavy projects and audits in regulated industries.
Get a Quick Quote for a ABB 2CHH590145A6070
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590145A6070?
Enquire Now
FAQs
Power down the system, remove the panel section, and align the flush-mounted switch within the cutout. Use either the claw or screw mounting method to secure the device, then connect conductors via the plug clamp terminals. Ensure the built-in depth of 17 mm fits your enclosure clearance and that the IP20-rated housing remains unobstructed to maintain protection. Reassemble and test the off position to confirm single-pole operation across the intended circuit.
The device is rated for 250 V and 10 A, making it suitable for typical lighting and control circuits in industrial panels. The maximum switching current is 10 A for fluorescent lamps, which covers common panel-lighting scenarios. For motor loads or inductive drives, verify inrush and startup current against the switch’s limits and consider using a contactor for higher power requirements.
No. The IP20 protection rating indicates suitability for indoor, dry environments and does not protect against moisture, dust, or exposure to weather. For exterior or damp environments, select a switch with a higher IP rating and appropriate enclosure protection. Also consider environmental sealing and conformal coatings for harsh manufacturing floors.
This switch carries CE and RoHS declarations, and REACH compliance with a dedicated SVHC declaration. WEEE categorization and ETIM EC001590 installation-switch classification further support compatibility and disposal expectations. These certifications simplify regulatory audits, ensure material traceability, and help buyers meet corporate sustainability and supplier qualification requirements in regulated industries.
The non-illuminated rocker reduces failure modes associated with illumination components, while the thermoplastic housing offers robust resistance to typical manufacturing wear. Plug clamp wiring expedites future maintenance and field replacements, lowering downtime. The compact 17 mm depth preserves panel space, and the 1-gang/1-pole design supports scalable panel configurations across multiple machines, improving overall maintenance efficiency and return on investment.
