ABB 2CHH590146A6062 Flush Mounted Rocker LED - IP20 CE
Part Number: 2CHH590146A6062
Quick Summary
ABB 2CHH590146A6062 Flush Mounted Rocker LED switches provide orientation lighting for control panels. Engineers often struggle with visible cues and reliable switching in tight panel spaces, which can slow commissioning. This device carries CE conformity, RoHS and REACH compliance, and an IP20 rating to protect users and electronics in indoor environments. The 1-gang, 1-rocker design with a plug-clamp wiring scheme reduces install time, while the exchangeable LED lamp delivers long-lasting visibility. Built to fit LEVIT design families, it supports faster wiring, easier maintenance, and clearer operator guidance on busy production lines.
Product Information
Extended Description

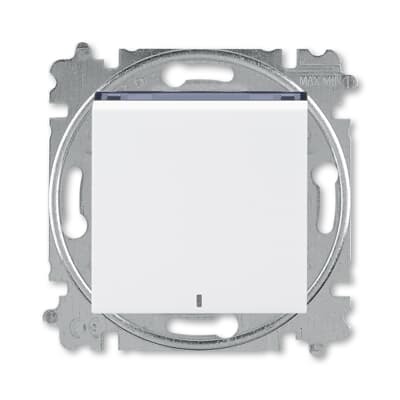

2CHH590146A6062 ABB: Switch 1 gang 1 way with LED lamp (orientation light)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
white
Product Net Weight
66.06 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590146A6062
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Flush Mounted installation reduces panel depth and delivers a clean, professional look, enabling seamless incorporation into control panels for machines and enclosures. The result is a compact footprint that helps maximize available space without compromising accessibility. This aligns with lean automation practices by simplifying layout planning and reducing panel machining time. Rocker lever actuation with a 1-gang 1-way configuration and a plug-clamp connection provides straightforward wiring and reliable control. The design supports fast field commissioning and minimizes wiring errors on the shop floor, delivering predictable performance in both new installations and retrofit projects. IP20 enclosure protection guards against incidental dust ingress and finger contact, enhancing reliability in indoor factory and control-room environments. With a rated voltage of 250 V and current of 10 A, it supports typical industrial loads without overdesign, lowering total cost of ownership. LED illumination offers orientation cues with energy-efficient operation and a long service life, reducing maintenance intervals. The thermoplastic white housing, available in untreated or glossy finishes, delivers durable, easy-to-clean panel integration suitable for modern automation environments. The 17 mm built-in depth keeps installations compact, while plug clamp wiring speeds up commissioning and reduces installation errors. Overall, this device combines robust engineering with practical installation advantages for LEVIT-based panels and similar ecosystems.
Get a Quick Quote for a ABB 2CHH590146A6062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590146A6062?
Enquire Now
FAQs
Installation is straightforward: mount the unit flush in the panel, secure using the claw or screws, and connect the conductors via the plug clamp terminals. The 1-pole off-switch wiring configuration supports simple on/off control, while the 17 mm built-in depth keeps installation compact. This minimizes panel modification and speeds up commissioning in new builds or retrofits.
The device is rated for 250 V and 10 A, suitable for common industrial loads within control panels. The maximum switching current is specified for Fluorescent Lamps at 10 A, and it uses a plug clamp connection for reliable, vibration-tolerant wiring. Always verify system requirements match these ratings before deployment.
Yes. With a rated voltage of 250 V and rated current of 10 A, the 2CHH590146A6062 is designed for standard indoor control-panel applications. Its IP20 protection rating helps guard against finger contact and dust ingress in non-harsh environments, while RoHS/REACH compliance supports regulatory requirements for industrial installations.
The switch features CE declaration of conformity, RoHS compliance, and REACH information. It is designed for safe indoor use with an IP20 rating and adheres to relevant ETIM classification (EC001590 - Installation switch). WEEE considerations are managed, supporting responsible end-of-life handling.
The LED is exchangeable, enabling easy replacement to preserve visibility without replacing the entire unit. Routine maintenance is minimal; practical steps include inspecting the LED status during preventive maintenance, confirming wiring integrity, and cleaning the panel surface to maintain optimal illumination and operator visibility in routine operation.
