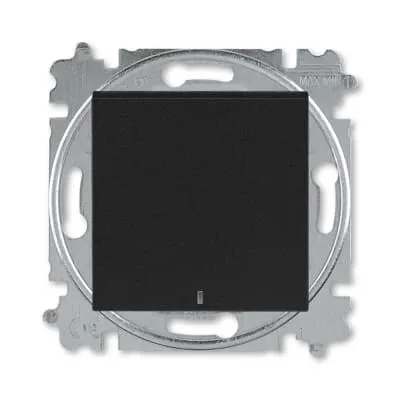

ABB 2CHH590146A6063 LED Rocker Switch - CE for panels
Part Number: 2CHH590146A6063
Quick Summary
ABB 2CHH590146A6063 Flush Mounted Rocker Switch with LED is a compact, 1-gang illuminated control for panel installations in industrial environments. Engineers often struggle with reliable indicator lighting and quick replacement without rewiring. This module delivers CE conformity, IP20 protection, and RoHS/REACH compliance, helping you meet European safety and environmental standards. By combining a plug clamp connection with a 1-pole off configuration, it reduces wiring errors and assembly time. The compact 17 mm built-in depth and 66.06 g net weight support dense panel layouts, while the LED lamp remains exchangeable to minimize maintenance costs. For manufacturers pursuing consistent design and easier service, this switch aligns with ABB's Levit design range.
Product Information
Extended Description
2CHH590146A6063 ABB: Switch 1 gang 1 way with LED lamp (orientation light)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Lacquered | Matt
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
black
Product Net Weight
66.06 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590146A6063
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted mounting type enables seamless panel integration and a clean control surface, reducing dust capture and snag points in tight enclosures. Business Impact: Improves reliability in harsh environments and supports compact cabinet layouts, boosting overall machine uptime. Application: Suitable for control panels and instrument housings where aesthetics and accessibility matter. Feature: Plug Clamp wiring simplifies and speeds installation, lowering labor time and wiring errors. Business Impact: Reduces commissioning time and injury risk during maintenance. Application: Industrial automation panels with 1-pole circuits. Feature: LED exchangeable lamp provides long-life illumination with straightforward field replacement. Business Impact: Minimizes spare parts inventory and maintenance costs while maintaining orientation lighting. Application: Orientation and status indication in machine dashboards. Feature: Rated 250 V and 10 A with IP20 protection ensures safe operation in typical panel applications. Business Impact: Supports common industrial loads while protecting internal components from incidental contact. Application: Machine controls, control cabinets, and instrumentation panels. Feature: 1-gang, 1-rocker switch with 1-pole operation offers straightforward control logic. Business Impact: Reduces wiring complexity and error-prone configurations. Application: Simple on-off control in automation sequences. Feature: RoHS/REACH and CE conformity provide regulatory assurance. Business Impact: Mitigates compliance risk and supports market access in Europe. Application: All European installations and OEM products leveraging ABB’s Levit design range. Feature: Durable thermoplastic construction and lacquered matt finish in black enhance panel compatibility and long-term visibility. Business Impact: Improves wear resistance and brand consistency across installed equipment. Application: Enclosures and control panels with aesthetic and functional demands.
