ABB 2CHH590146A6065 Rocker Switch with LED - IP20
Part Number: 2CHH590146A6065
Quick Summary
ABB 2CHH590146A6065 is a flush-mounted rocker switch with LED illumination designed for orientation lighting in control panels and equipment enclosures. Engineers often struggle with indicator reliability in tight spaces, where bulky modules slow installation and maintenance. This unit combines a replaceable LED lamp with a compact 1-gang, 1-pole design to simplify servicing and reduce downtime. It carries CE conformity, RoHS compliance, and IP20 protection, supporting safe operation in standard industrial environments. The plug-clamp connection and thermoplastic housing offer fast wiring and long-term durability, while the LEVIT design range supports effortless system integration. For panel builders and integrators, this delivers clear status signaling, consistent visibility, and scalable compatibility across automation projects.
Product Information
Extended Description

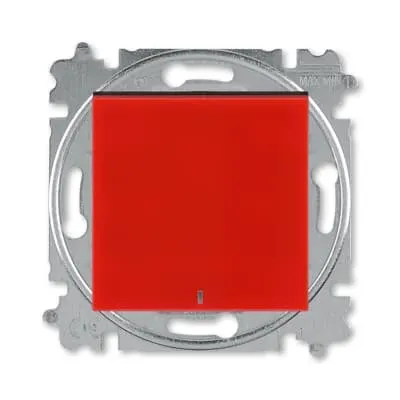

2CHH590146A6065 ABB: Switch 1 gang 1 way with LED lamp (orientation light)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
red
Product Net Weight
66.06 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590146A6065
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted design with claw or screw mounting. Business Impact: Maximizes panel density and reduces housing intrusion, enabling tighter layouts and faster installation. Application: Ideal for 1-gang control locations in machine panels and process enclosures. Feature: LED orientation lamp that is exchangeable. Business Impact: Eases maintenance and reduces downtime by allowing quick LED replacement without full disassembly. Application: Status signaling in safety interlocks and machine indicators. Feature: Electrical ratings of 250 V and 10 A with a 1-pole off configuration and plug clamp wiring. Business Impact: Supports common automation loads with reliable, tool-free wiring and consistent diagnostics. Application: Control circuits and indicator applications in automation panels. Feature: Visual design and materials — red color, thermoplastic housing, 17 mm built-in depth. Business Impact: Improves visibility and mounting clarity while maintaining compact integration in tight spaces. Application: Panel interiors where space and quick identification matter. Feature: Compliance and sustainability — IP20, RoHS, REACH, WEEE, and CE declaration. Business Impact: Ensures regulatory alignment and responsible sourcing across projects. Application: B2B procurement for regulated manufacturing environments and global deployments.
Get a Quick Quote for a ABB 2CHH590146A6065
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590146A6065?
Enquire Now
FAQs
This unit is designed for standard 1-gang cutouts and flush-mounted installation. It supports mounting with claws or screws and uses a plug clamp for wiring, making it suitable for common control panels, machine enclosures, and ABB-compatible panel assemblies without requiring bespoke adaptors.
The switch is rated for 250 V and 10 A with a 1-pole off configuration and a maximum switching current specified for fluorescent lamps as 10 A. It is built for typical control circuits and indicator signaling in automation panels, providing reliable operation for standard machine controls.
Yes. The product carries CE conformity and RoHS compliance with REACH declarations. The WEEE categorization supports proper end-of-life handling, aligning with European regulatory expectations for industrial components used in automation and control systems.
Wiring uses a plug clamp connection for fast, tool-free assembly. The LED is exchangeable, reducing maintenance time and downtime when illumination updates are needed, which is especially beneficial for high-availability control panels.
Industries including manufacturing, process automation, and machine tooling benefit from its compact flush-mounted design, clear red signaling, IP20 protection, and regulatory compliance. It is well-suited for orientation lighting and status indication in control panels and safety interlocks across automated systems.
