ABB 2CHH590146A6066 Flush Mounted Inserts - IP20 LED
Part Number: 2CHH590146A6066
Quick Summary
ABB 2CHH590146A6066 Flush Mounted Inserts provide compact, illuminated control for 1-gang, 1-way lighting in industrial control panels. This design addresses the common challenge of crowded enclosures and unclear orientation signals by delivering a space-saving, reliable indicator with an easily replaceable LED lamp. The unit carries CE certification and RoHS/REACH compliance, with an IP20 rating for indoor use. Built on a Levit-compatible concept, the rugged thermoplastic housing supports durable operation while simplifying procurement and stocking. In practice, this insert delivers straightforward installation, predictable behavior, and reduced maintenance cost, making it a dependable option for panel builders and electrical contractors alike.
Product Information
Extended Description

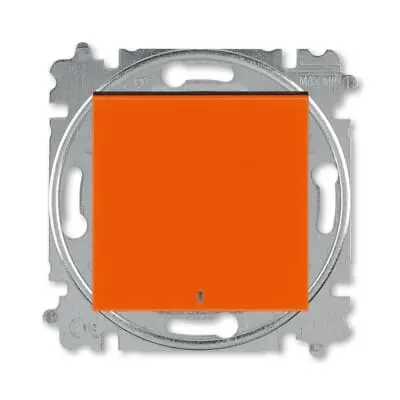

2CHH590146A6066 ABB: Switch 1 gang 1 way with LED lamp (orientation light)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
orange
Product Net Weight
66.06 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590146A6066
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted mounting type → Business Impact: Maximizes panel real estate and simplifies installation, reducing assembly time and cabinet depth requirements; Application: Ideal for compact automation panels and control enclosures. Feature: LED exchangeable lamp → Business Impact: Lowers maintenance cost by enabling quick LED replacement without full module removal; Application: Orientation lighting in machines and process lines. Feature: Plug Clamp connection → Business Impact: Speeds wiring and improves connection reliability, minimizing field wiring errors; Application: Frequent startup environments and serviceable installations. Feature: IP20 protection → Business Impact: Ensures safe indoor use with dust protection, lowering risk of ingress in typical control room cabinets; Application: Indoor industrial control panels and junction boxes. Feature: RoHS/REACH and CE compliance → Business Impact: Reduces regulatory risk and simplifies global sourcing; Application: International projects requiring compliance. Feature: Thermoplastic orange housing → Business Impact: Easy visual identification and high-contrast status signals in busy control rooms; Application: Colour-coded panels for quick operation.
