ABB 2CHH590146A6067 Flush Mounted Inserts - IP20 LED
Part Number: 2CHH590146A6067
Quick Summary
ABB 2CHH590146A6067 is a flush mounted rocker switch with LED orientation light for control panels. Engineers often struggle with durable, replaceable indicators in compact enclosures, leading to maintenance downtime and unclear panel status. This product carries CE conformity, RoHS and REACH declarations, plus an IP20 protection class for safe indoor use. Designed for 1-gang, 1-way circuits with plug clamp wiring, it delivers reliable illumination and straightforward maintenance, improving panel readability and reducing lifecycle costs. The LED lamp is exchangeable, enabling quick replacements without full disassembly, while mounting with both claw and screw options supports flexible installation in pre punched backplanes and retrofit projects. This combination supports efficient, compliant panel design for machinery and automation systems.
Product Information
Extended Description

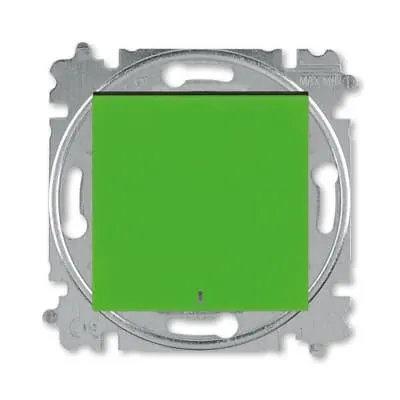

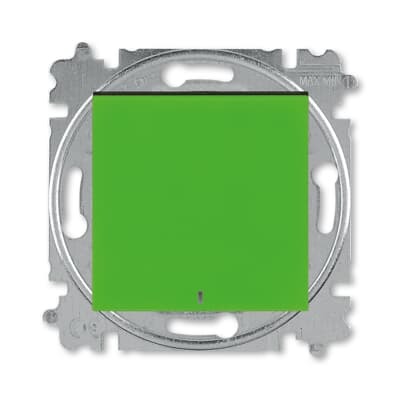

2CHH590146A6067 ABB: Switch 1 gang 1 way with LED lamp (orientation light)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
green
Product Net Weight
66.06 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590146A6067
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted installation provides a sleek, low-profile interface that reduces protrusions and simplifies panel cleaning. Business Impact: Improves aesthetics, minimizes snag hazards, and enhances operator access to controls. Application: Front-mounted control stations on machines and cabinet enclosures. Feature: 1 gang, 1 rocker with exchangeable LED lamp offers a clear orientation indicator. Business Impact: Reduces misoperations and downtime by signaling status at a glance. Application: Machine controls and signal panels in automation lines. Feature: Plug Clamp wiring and off switch 1-pole configuration speeds up termination and minimizes wiring errors. Business Impact: Lowers installation time and labor costs while improving reliability. Application: Control panels and enclosure wiring in manufacturing environments. Feature: IP20 protection and durable thermoplastic housing deliver dependable indoor performance. Business Impact: Guards against finger access and dust ingress in normal shop floor conditions. Application: Indoor control boxes and panel housings in electronics and mechanical assemblies. Feature: Exchangeable LED with robust illumination supports long service intervals. Business Impact: Reduces maintenance time and total cost of ownership. Application: Any 1-gang control point requiring reliable indicator lighting. Feature: RoHS and REACH compliant with CE declaration ensures regulatory alignment. Business Impact: Simplifies compliance auditing and supplier qualification. Application: Industrial equipment across sectors demanding environmental and chemical safety standards. Feature: Levit design range compatibility and compact 17 mm built-in depth optimize retrofit and new installations. Business Impact: Accelerates project timelines and fits dense panel layouts. Application: Modernization projects and new builds in automation systems.
Get a Quick Quote for a ABB 2CHH590146A6067
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590146A6067?
Enquire Now
FAQs
To install, ensure the panel cutout matches a single-gang footprint, select a mounting method (claw or screw), and terminate conductors using the plug clamp connection. Mount the switch flush to the faceplate, insert the LED lamp if needed, and secure with the chosen fasteners. Finally, test the off-on operation and orientation lamp to confirm correct function.
The device is rated for 250 V and 10 A nominal current with a 1-pole off configuration. Maximum switching current is specified for specific loads (e.g., fluorescent lamps up to 10 A). Do not exceed these ratings to ensure safe operation and comply with IP20 indoor use requirements.
Yes, the LED lamp is exchangeable. Replacement typically involves removing the central cover or accessing the LED module via the intended access point, without disassembling the entire switch. This design minimizes downtime and keeps panel maintenance straightforward for uptime-critical applications.
The product carries CE conformity and RoHS/REACH declarations, along with WEEE compliance for proper end-of-life handling. It is designed for IP20 indoor use and complies with ETIM specifications for installation switches, helping with procurement and regulatory alignment across industries.
Ideal for 1-gang, 1-way control points requiring orientation lighting in machines, control boxes, and instrument panels. Its compact flush-mount design, plug clamp wiring, and exchangeable LED lamp suit retrofit and new installations in automation lines, where readability, reliability, and maintenance efficiency are critical.
