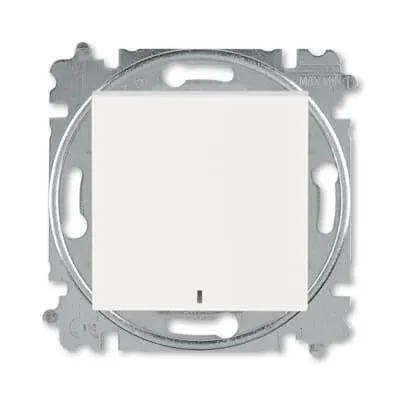

ABB 2CHH590146A6068 Rocker Switch with LED - IP20
Part Number: 2CHH590146A6068
Quick Summary
Rocker Switch with LED illumination provides compact, flush-mounted control for 1-gang lighting and signaling in electrical panels. Engineers often contend with crowded enclosures, ambiguous indicator status, and slow LED replacements that disrupt production. This device carries CE conformity, RoHS and REACH declarations, plus ETIM classification, supporting compliant procurement and fast sourcing for industrial environments. Its IP20 protection and robust construction ensure reliable operation in indoor dry spaces, while the LED indicator enhances visibility and reduces commissioning time. For panel builders and maintenance teams, this solution delivers a discrete, durable control element with easy-to-service LEDs and straightforward wiring, aligning with efficiency goals and total cost of ownership considerations.
Product Information
Extended Description
2CHH590146A6068 ABB: Switch 1 gang 1 way with LED lamp (orientation light)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Lacquered | Matt
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
white
Product Net Weight
66.06 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
2CHH590146A6068
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: Flush Mounted design enables a low-profile install that saves panel depth and simplifies retrofits in crowded control cabinets, reducing installation time and panel front-back clearance issues for machine operators. Feature → LED exchangeable lamp and Illumination → improves visibility of switch status in low-light conditions, lowering misoperation risk and enabling quicker fault diagnosis during routine maintenance. Feature → 1 gang, 1 rocker, Off switch 1-pole → delivers clear, single-point control suitable for simple on/off lighting circuits, increasing operator clarity and process reliability in panel assemblies. Feature → Plug Clamp wiring → simplifies field connections, reduces wiring errors, and speeds up commissioning in both new builds and refurbishments. Feature → IP20 rating and Thermoplastic housing with lacquered matt finish → provides dependable indoor durability with a clean, industrial aesthetic that withstands routine cleaning. Feature → RoHS/REACH/CE compliance and ETIM EC001590 → mitigates regulatory risk, simplifies purchasing specs, and improves interoperability with other ABB components. Secondary keywords embedded include flush-mounted rocker switch, LED indicator, 1 gang 1 way, 250 V, 10 A, and installation switch, ensuring search relevance while maintaining technical accuracy for engineers and procurement teams.
Get a Quick Quote for a ABB 2CHH590146A6068
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590146A6068?
Enquire Now
FAQs
Yes. This unit is a 1-gang, 1-way flush-mounted switch with a plug clamp connection, compatible with common backboxes and mounting options. It supports mounting with claws or screws, enabling flexible installation in retrofit or new panel builds.
The switch is rated for 250 V and up to 10 A, with a maximum switching current stated for fluorescent loads at 10 A. It is intended for simple on/off lighting or signaling circuits within dry indoor environments, and should not be used beyond these ratings.
Yes. With IP20 protection, a white lacquered matt finish, and an LED indicator, it provides reliable visibility and operation in indoor industrial panels. The housing material is thermoplastic, designed for durability in harsh environments while maintaining a compact profile.
The product ships with EU Declaration of Conformity (CE), RoHS and REACH declarations, and ETIM classification (EC001590). These certifications help meet procurement standards and simplify compliance across regional regulatory requirements.
LEDs are exchangeable, allowing easy replacement without replacing the entire switch, reducing maintenance downtime. The compact 17 mm depth and straightforward wiring speed up installation, lowering labor costs and total cost of ownership in ongoing panel maintenance and upgrades.
