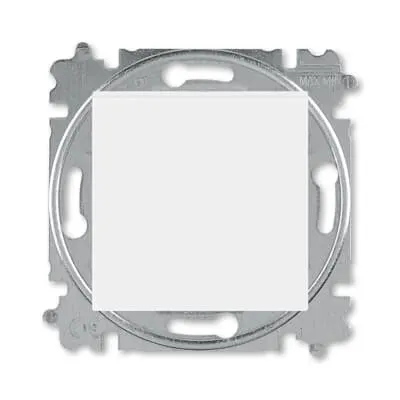

ABB 2CHH590245A6003 Flush Mounted Rocker Lever - IP20
Part Number: 2CHH590245A6003
Quick Summary
ABB 2CHH590245A6003 Flush Mounted Rocker Lever is a compact two-pole, one-gang switch designed for 250 V control in control panels. Engineers often struggle with tight mounting access and secure wiring in dense assemblies; this unit combines flush mounting with versatile claw or screw fastening and a plug-clamp connection for secure, repeatable installations. The design aligns with essential certifications for safe industrial use, including CE conformity, IP20 protection, and RoHS/REACH declarations that support compliance across regional regulations. With robust current rating and straightforward installation, this switch helps reduce calibration and maintenance costs while delivering predictable performance in automation and machine-building contexts.
Product Information
Extended Description
2CHH590245A6003 ABB: Switch, two-pole, 1 gang 1 way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
LEVIT_Brochure_9AKK107991A4554_(PDF)_[EN]
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
2-pole switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element with central cover plate
Actuator Type
Rocker lever
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Levit
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
Color
white
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559H-A02445 03W
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
