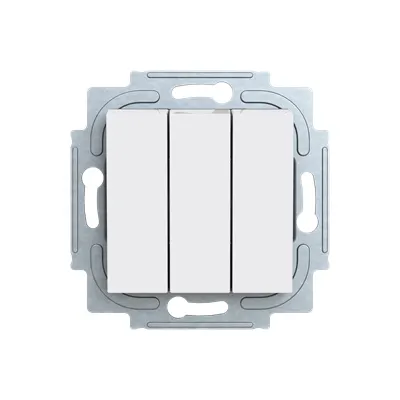

ABB 2CHH590345A6003 Off switch 3x1-pole - IP20
Part Number: 2CHH590345A6003
Quick Summary
ABB 2CHH590345A6003 Off switch provides compact three-gang control for panel-level power management in automation. Engineers often struggle with space constraints, wiring complexity, and downtime when integrating multi-gang switches. This device ships with IP20 protection and ETIM EC001590 classification, and CMRT compliance, supporting global procurement. Designed for wired installations with a durable rocker lever and a glossy thermoplastic housing, it simplifies 3-gang mounting and reduces commissioning time, boosting panel efficiency. In procurement terms, the device supports standard panel design, reduces part count, and aligns with CMRT and ETIM classifications. Its non-illuminated operation minimizes energy waste in low-light environments.
Product Information
Extended Description
2CHH590345A6003 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 9003
Color
white
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6003
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted mounting type improves panel real estate efficiency, reducing front-face protrusion and enabling tighter layouts in automation cabinets. Business Impact: Enables faster assembly, reduces clearance issues, and minimizes housing depth in crowded control panels. Application: Ideal for machine enclosures and compact automation cabinets where space is at a premium. Feature: Stick and Screw fastening provides robust retention during vibration and field service. Business Impact: Simplifies on-site mounting with reliable mechanical fixing, reducing commissioning time and revisit repairs. Application: Suitable for panel builders and service technicians installing three independent rocker switches in control panels. Feature: IP20 degree of protection delivers interior protection against dust and finger access in standard indoor environments. Business Impact: Improves reliability and reduces contamination risk inside panels. Application: Automation and manufacturing panels exposed to regular indoor operation. Feature: 3x1-pole wiring configuration with a rocker lever actuator delivers clear, independent control of three loads. Business Impact: Minimizes cross-talk and simplifies wiring diagrams, aiding maintenance. Application: Multi-circuit control tasks in machine control panels. Feature: Non-illuminated design minimizes energy use and avoids stray light in low-light environments. Business Impact: Lower operating costs and simpler user interfaces. Application: Non-illuminated indicators in industrial panels. Feature: Thermoplastic, glossy white surface (RAL-like 9003) offers durable, easy-to-clean aesthetics. Business Impact: Longer service life and consistent panel appearance. Application: Both automotive and industrial enclosures requiring clean visual integration. Feature: Compact footprint with 81 mm width/height and 51 mm depth plus 40 mm built-in depth simplifies cutouts and retrofit. Business Impact: Reduces panel redesign time and supports standardized installation. Application: Retrofit projects and new builds aiming for modular, scalable panels.
Get a Quick Quote for a ABB 2CHH590345A6003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6003?
Enquire Now
FAQs
The device uses flush-mounted mounting with stick and screw fastening, designed for reliable, space-efficient panel integration. It fits standard three-gang control panels and allows straightforward field installation.
It is rated for 250 V and 10 A, with a maximum switching current of 10 A per pole, suitable for typical control circuits in industrial panels.
The switch is non-illuminated and features a glossy white thermoplastic housing, with a finish similar to RAL 9003 for clear visibility in standard panel environments.
Yes. It has IP20 protection and is classified under ETIM EC001590 for installation switches, with CMRT compliance to support responsible-sourcing requirements in global procurement.
Product net width and height are 81 mm each, with a product net depth of 51 mm and a built-in depth (t2) of 40 mm, providing a standardized 3-gang footprint for streamlined cutouts and retrofits.
