ABB 2CHH590345A6016 Switch - IP20 3x1-pole 10 A
Part Number: 2CHH590345A6016
Quick Summary
ABB 2CHH590345A6016 switches provide flush-mounted off-switch control for 3x1-pole circuits in compact industrial control panels across manufacturing lines. Engineers often struggle with complex installation, limited IP protection, noisy environments, and wiring that fails under vibration, especially in retrofit projects. Designed for CE conformity and robust thermal performance, it also provides IP20 protection and non-illuminated operation, making it suitable for indoor, panel-mounted applications. This ABB solution supports easy stick-and-screw mounting, 3x1-pole wiring, and reliable actuation with a compact glossy plastic housing, reducing installation time, maintenance, and field errors. By choosing this component, procurement gains standardization across panels and better long-term supply continuity.
Product Information
Extended Description

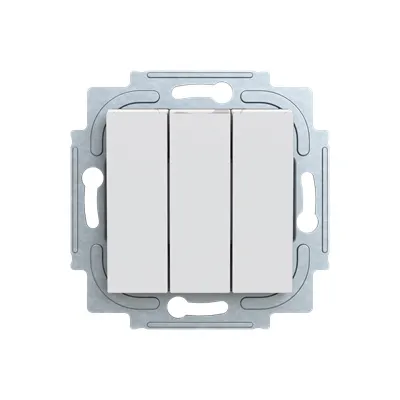

2CHH590345A6016 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 7035
Color
grey
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6016
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Flush-mounted design integrates into standard control panels, minimizing protrusion and enabling denser, neater layouts. This streamlines assembly, reduces enclosure depth, and lowers labor costs on both new builds and retrofit projects. 3x1-pole off-switch configuration simplifies wiring by allowing independent control of three circuits in a single device. The stick-and-screw fastening provides secure mounting even in vibration-prone environments, improving field reliability. IP20 rated and non-illuminated operation keep the device suited for indoor panel environments without unnecessary power draw or glow. This combination reduces maintenance cycles and helps meet indoor electrical safety requirements in typical factory settings. Thermoplastic glossy housing in grey (RAL-like 7035) delivers an economical, durable finish with easy cleaning. Its compact 81 mm by 81 mm footprint and 51 mm depth fit standard cutouts while built-in depth of 40 mm simplifies panel planning. Electrical ratings of 250 V and 10 A, with a maximum switching current of 10 A, match common control loads found in automation panels. Material and compliance details — CMRT and ETIM EC001590 — support regulatory alignment and supplier diligence. Label space is not provided; plan external labels or panel legends to meet documentation requirements. By including CMRT and ETIM EC001590 details in procurement packs, teams streamline documentation and compliance reporting.
