ABB 2CHH590345A6017 Flush Mounted Inserts - IP20
Part Number: 2CHH590345A6017
Quick Summary
ABB 2CHH590345A6017 is a flush mounted off-switch for 3x1-pole control in industrial panels. Engineers often struggle with crowded enclosures and unreliable mounting; this unit delivers a compact fit and robust operation. It offers IP20 protection, CMRT compliance, and ETIM 9 classification, supporting safe, traceable procurement and predictable performance. Designed for wired installations and three rockers, it enables quick stick-and-screw mounting and a durable, ivory thermoplastic face that blends with panel aesthetics while reducing maintenance cost. In short, this switch supports reliable control, easy retrofits, and a cleaner, more professional panel presentation.
Product Information
Extended Description

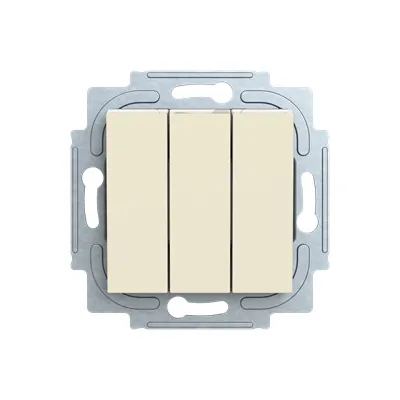

2CHH590345A6017 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 1014 - Ivory
Color
beige
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6017
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted mounting type. Business Impact: Maximizes panel real estate and delivers a clean, professional appearance for control enclosures. Application: Ideal for machine dashboards and distributed control panels where space is at a premium. Feature: Stick and Screw fastening. Business Impact: Enables straightforward field installation and retrofit without specialized tools. Application: Suitable for on-site upgrades in manufacturing lines. Feature: IP20 protection. Business Impact: Provides reliable indoor performance against dust intrusion and incidental contact, reducing service calls. Application: Indoor control cabinets and process panels. Feature: Three rockers (3x1-pole) with wired configuration. Business Impact: Consolidates multiple control functions into a single compact unit, improving wiring clarity and reducing panel depth. Application: Simple, multi-function control stations in automation systems. Feature: Thermoplastic material with RAL 1014 Ivory finish. Business Impact: Durable, easy to clean, and aesthetically compatible with common control-panel finishes. Application: Enclosures and switch assemblies in electrical cabinets. Feature: Non-illuminated operation. Business Impact: Reduces energy use and simplifies maintenance in environments where indication is unnecessary. Application: Standard on non-illuminated control switches for industrial use. Feature: Built-in dimensions (81 mm x 81 mm face, 51 mm depth; t2 40 mm). Business Impact: Predictable fit with standard backboxes and mounting cutouts, simplifying procurement and installation. Application: Retrofit or new builds in standard industrial panels.
Get a Quick Quote for a ABB 2CHH590345A6017
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6017?
Enquire Now
FAQs
The unit uses flush mounted installation with stick and screw fastening, enabling fast and secure mounting directly into standard backboxes or cutouts. This reduces the time needed for panel upgrades and simplifies retrofits in existing control cabinets.
It is rated for 250 V and up to 10 A, with a maximum switching current of 10 A. The wiring configuration is Off switch 3x1-pole, and the device uses a wired connection for reliable field wiring and terminations.
Yes. With 3 rocker switches in a single 3x1-pole unit, IP20 protection, and a non-illuminated design, it is well-suited for panel control in automation, machine dashboards, and control cabinets where a compact, robust solution is required.
The product aligns with CMRT for conflict minerals reporting and ETIM 9 classification (EC001590 - Installation switch). It also carries IP20 protection and uses a thermoplastic face in RAL 1014 ivory, supporting regulatory and sourcing requirements.
The non-illuminated, thermoplastic construction reduces heat and simplifies cleaning, while the durable finish and stick-and-screw mounting minimize maintenance and replacement intervals. Its compact dimensions and standardized cutouts also help with predictable lifecycle planning and easier spares management.
