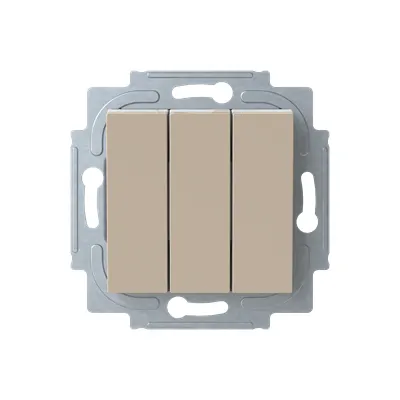

ABB 2CHH590345A6018 Off switch - IP20
Part Number: 2CHH590345A6018
Quick Summary
ABB 2CHH590345A6018 is a flush-mounted 3-gang off-switch designed for control panels and electrical enclosures. Engineers commonly struggle with tight installation space, wiring complexity, and lack of reliable indicators in busy automation environments. This unit carries IP20 protection and aligns with EC001590 installation switch standard, plus CMRT for responsible sourcing. Its wired, non-illuminated rocker design helps simplify panel integration, while delivering predictable, low-maintenance operation. For procurement teams, this means reduced lead times, standardized wiring practices, and easier maintenance planning across machines and lines. By combining robust mechanical fit with industry-standard spec, it supports scalable deployments in both new builds and retrofit projects.
Product Information
Extended Description
2CHH590345A6018 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 7006 - Beige Grey
Color
brown
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6018
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature: Flush-mounted, 3-gang rocker switch with stick-and-screw fastening. Business Impact: Saves panel space and speeds installation by allowing a compact, secure fit. Application: Ideal for control cabinets and machine enclosures where space is tight and quick retrofit is needed. Feature: 3x1-pole wiring configuration and wired connection. Business Impact: Provides independent control of three circuits within a single device, reducing wiring complexity and error potential. Application: Machine control panels and process lines requiring centralized switching of multiple circuits. Feature: IP20 protection and non-illuminated operation. Business Impact: Protects internals from dust exposure while avoiding standby power draw from illumination. Application: Enclosures in clean rooms or workshops where indicator lights are not desired. Feature: Rugged thermoplastic housing with glossy finish and RAL 7006 beige grey. Business Impact: Durable, color-coded aesthetics that align with panel coding and reduce misidentification. Application: Panel assemblies requiring consistent color, finish, and material compatibility. Feature: Compact footprint (81 mm x 81 mm) with 40 mm built-in depth. Business Impact: Enables easy retrofits and minimizes cutouts, reducing modification time and costs. Application: Retrofit projects and new builds with tight space planning. Feature: CMRT and EC001590 alignment. Business Impact: Ensures regulatory compliance and responsible sourcing for procurement and audits. Application: Compliance-driven projects and supplier assessments in industrial automation.
Get a Quick Quote for a ABB 2CHH590345A6018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6018?
Enquire Now
FAQs
Install by placing the device into a flush-mount cutout and securing with the stick-and-screw method. Wire three independent 1-pole circuits for up to 250 V and 10 A per pole. Ensure the enclosure maintains IP20 protection and that the switch sits squarely for reliable operation over time.
The switch has a rated voltage of 250 V and a rated current of 10 A per pole, with a maximum switching current of 10 A. The 3x1-pole arrangement enables simultaneous control of three circuits, in a wired, non-illuminated format suitable for standard automation tasks.
Yes. It provides IP20 protection for indoor control cabinets and panels where dust exposure is limited. The non-illuminated rocker avoids glow and extra power consumption, making it ideal for bright environments and where indicator lights are not required, while maintaining reliable wired operation.
Key certifications include CMRT for conflict minerals reporting and EC001590 (ETIM 9) installation switch classification. The IP20 rating and thermoplastic housing support common CE-related safety expectations, helping streamline supplier audits and procurement in industrial automation projects.
Yes. The device fits an 81 mm net width and height with a 51 mm net depth and 40 mm built-in depth, enabling straightforward retrofits. Stick-and-screw mounting, combined with a 3x1-pole wiring configuration, preserves three control circuits in a compact footprint suitable for panel upgrades.
