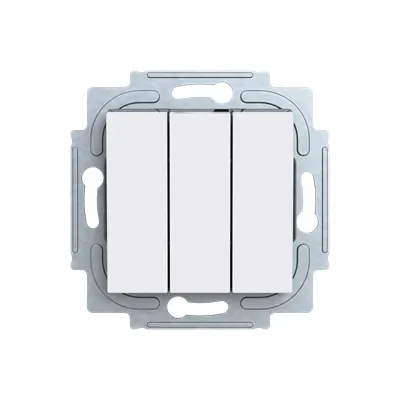

ABB 2CHH590345A6062 Flush Mounted Off Switch - 3x1-Pole 10 A
Part Number: 2CHH590345A6062
Quick Summary
ABB 2CHH590345A6062 is a flush-mounted off switch designed for three-pole control in control panels. Installing non-illuminated switches in compact enclosures often creates wiring depth and mounting challenges for OEMs. With CE certification, ETIM EC001590 alignment, and IP20 protection, this switch meets common standards while staying rugged for industrial use. The 3x1-pole rocker design and robust thermoplastic housing deliver reliable operation, while its compact footprint supports cost-efficient panel layouts.
Product Information
Extended Description
2CHH590345A6062 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 9003
Color
white
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6062
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature: Mounting type Flush Mounted → Business Impact: Maximizes front-panel space and yields a neat, flush appearance in control panels, reducing enclosure depth. Application: Ideal for machine enclosures and OEM control panels seeking a seamless interface. Feature: Wiring Configuration Off switch 3x1-pole → Business Impact: Simplifies multi-circuit control wiring, enabling safer, faster installs and easier maintenance. Application: Suitable for distributed control loops and panel assemblies. Feature: Material & Finish Thermoplastic housing, Glossy | Untreated → Business Impact: Delivers cost-effective, durable construction with good chemical resistance and easy cleaning. Application: Indoor electrical panels in manufacturing environments. Feature: Electrical Ratings 250 V, 10 A → Business Impact: Supports common automation control circuits with reliable switching performance, reducing component count. Application: 3-way control lines in automation panels. Feature: Protection & Illumination IP20, Non-illuminated → Business Impact: Protects sensitive electronics in interior panels while avoiding unnecessary power consumption and illumination maintenance. Application: Interior control panels and equipment housings. Feature: Standards & Compatibility ETIM EC001590, CMRT, CE → Business Impact: Ensures regulatory compliance and traceability, simplifying procurement and quality assurance. Application: Panel builders aligning with industry compliance programs.
Get a Quick Quote for a ABB 2CHH590345A6062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6062?
Enquire Now
FAQs
This switch uses a flush-mounting design with stick-and-screw fastening. Prepare an 81x81 mm panel opening, insert the unit, then secure using the provided fastening method. Wire the three 1-pole circuits in the off-switch configuration, ensuring the overall wiring remains tidy and within the 250 V, 10 A rating. The result is a clean front panel and reliable operation in interior panels.
Rated at 250 V and 10 A with a maximum switching current of 10 A, this switch is designed for 3x1-pole control in non-illuminated, interior panel applications. It supports typical automation circuits in control panels and OEM equipment, providing solid performance without additional illumination requirements.
Yes. The product carries CE certification and aligns with ETIM EC001590 for installation switches, aiding procurement and regulatory compliance. The CMRT documentation further supports responsible sourcing, making it suitable for regulated industrial environments.
The switch is flush mounted with stick-and-screw fastening, designed for an 81x81 mm front panel opening and a built-in depth of 40 mm. Its plastic thermoplastic housing and white glossy finish simplify refurbishment of existing enclosures while maintaining a compact panel footprint and stable mechanical fit.
Being non-illuminated and rated for 250 V/10 A, the switch minimizes maintenance related to illumination and offers predictable mechanical life under normal industrial use. The IP20 protection level guards against dust ingress in interior panels, while the thermoplastic housing provides resistance to typical workshop environments.
