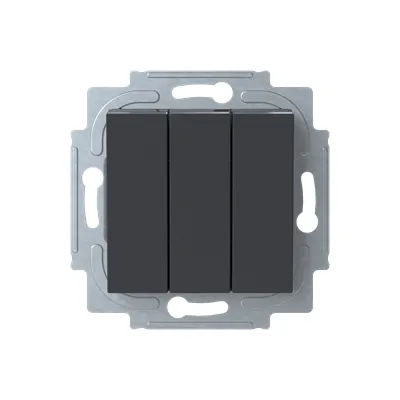

ABB 2CHH590345A6063 Off Switch - IP20 3x1-Pole
Part Number: 2CHH590345A6063
Quick Summary
ABB 2CHH590345A6063 Off Switch is a compact 3-gang rocker switch designed for flush-mounted control panels and machine enclosures. It consolidates three circuits in a single insert, helping you save panel space and reduce wiring complexity. Engineers often wrestle with crowded enclosures and inconsistent wiring layouts; this unit’s slim profile and precise mounting footprint make installation predictable and repeatable. The product carries IP20 protection for indoor use, CMRT reporting for responsible supply chains, and ETIM 9 EC001590 designation for installation switches. By standardizing on this module, your electrical assemblies benefit from faster assembly, clearer labeling (no illumination to worry about), and improved reliability in everyday industrial environments.
Product Information
Extended Description
2CHH590345A6063 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Lacquered | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 7021
Color
black
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6063
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: Flush Mounted 3x1-Pole design saves valuable panel space and reduces overall footprint, enabling denser control panels and simpler wire routing for automation systems. This translates to faster assembly, easier maintenance, and lower cabling costs in manufacturing lines and packaging machinery. Application: control panels and enclosure installations where compact multi-circuit switching is required. Feature → Business Impact → Application: 3 rocker switches in one insert provide independent control of three circuits, improving operator clarity and reducing mis-wiring risk in industrial automation setups. Application: machine tools, conveyors, and process equipment where discrete on/off control is needed. Feature → Business Impact → Application: IP20 protection delivers reliable interior performance in clean, dry environments, minimizing dust ingress risk during routine maintenance. Application: indoor control panels and panel-mounted assemblies. Feature → Business Impact → Application: Stick-and-screw fastening ensures secure mounting even after vibration or frequent door access, reducing panel loosening and service calls. Application: installations in dynamic production lines. Feature → Business Impact → Application: Lacquered matt finish and black thermoplastic housing offer durable aesthetics and resistance to wear, aiding visibility and long-term panel consistency. Application: front-face aesthetics and durable operation in industrial environments. Feature → Business Impact → Application: Non-illuminated operation avoids unnecessary power draw and simplifies wiring diagrams in low-light facilities. Application: cost-efficient, reliable switching for standard control tasks.
Get a Quick Quote for a ABB 2CHH590345A6063
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6063?
Enquire Now
FAQs
This switch is flush-mounted and uses stick-and-screw fastening for secure panel installation. It offers wired connections for three separate circuits in a single 3x1-pole module, rated at 250 V and 10 A. The compact 81 mm x 81 mm footprint and 51 mm depth simplify panel cutouts and reduce wiring complexity in new builds or retrofits.
Yes. The device is a 3-gang, 3x1-pole off switch with three independent rockers. Rated at 250 V and 10 A, it supports multiple circuits in a single insert, enabling higher panel density, cleaner wiring schemes, and clearer operator control in machine enclosures and process lines.
The part is CMRT-certified for Conflict Minerals reporting and conforms to ETIM 9 EC001590 for installation switches. It features IP20 ingress protection and non-illuminated operation, making it suitable for indoor industrial environments while maintaining compliance with common procurement specifications.
The flush-mounted design with stick-and-screw mounting provides secure, vibration-resistant installation that minimizes loosening over time. The 3x1-pole configuration reduces wiring complexity, while the lacquered matte finish and thermoplastic body offer durability against wear. With an IP20 rating, it remains reliable in clean indoor environments, supporting predictable maintenance cycles.
Benefits include higher panel density due to the slim 81x81 mm footprint, reduced wiring routes from consolidating three circuits into one module, and faster assembly with repeatable mounting. The 10 A, 250 V rating covers common control tasks, helping minimize component counts and maintenance costs while delivering reliable, long-term performance.
