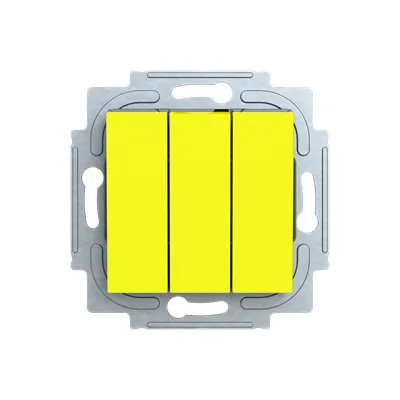

ABB 2CHH590345A6064 Off Switch - IP20, 3x1-pole 10 A
Part Number: 2CHH590345A6064
Quick Summary
ABB 2CHH590345A6064 Off Switch provides compact, flush-mounted control for three 1-pole circuits in control panels. For engineers juggling limited space and complex wiring, this model streamlines installation and reduces panel footprint. With IP20 protection for indoor environments and ETIM EC001590 classification, CMRT reporting, and a robust plastic construction, it supports reliable, traceable deployment. This 3x1-pole rocker switch integrates quickly into existing panels, delivering cost savings through standardized components and simpler maintenance. In addition, its non-illuminated design and 10 A rating suit low-energy signaling and safe operation in industrial environments. For procurement, the product's clear specification alignment with 81x81 mm cutouts and 51 mm depth minimizes redesign. Its stick-and-screw mounting simplifies field installation and reduces commissioning time.
Product Information
Extended Description
2CHH590345A6064 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 1026 - Luminous Yellow
Color
yellow
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6064
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Flush-mounted design reduces panel depth requirements, enabling denser control layouts and faster wiring. The 3x1-pole rocker switch delivers reliable switching for motor and line loads at 250 V and 10 A, supporting standardized control across machines and cabinets. A wired configuration with stick-and-screw mounting ensures durable, vibration-resistant installation while simplifying serviceability in demanding environments. The glossy thermoplastic housing, colored in luminous yellow (RAL 1026), supports quick visual identification in busy control rooms, improving operator safety and reducing misoperation. The non-illuminated actuator minimizes power consumption and simplifies maintenance in low-light industrial settings. With IP20 ingress protection and robust 81x81 mm footprint, installation fits common back-box cutouts, enabling rapid retrofits and consistent panel design. CMRT reporting and ETIM EC001590 classification reinforce supply-chain traceability and standardization across projects, reducing procurement risk and improving compliance across multi-site deployments. Overall, the solution delivers measurable efficiency gains, improved wiring discipline, and lower lifecycle costs in automation cabinets and enclosures.
Get a Quick Quote for a ABB 2CHH590345A6064
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6064?
Enquire Now
FAQs
This switch is designed for flush-mounted, 3x1-pole installations with stick-and-screw fastening. It fits standard 81x81 mm faceplates and enclosures, leaving a built-in depth of 40 mm and exterior depth of 51 mm. The IP20-rated, non-illuminated rocker ensures reliable operation in most indoor control panels.
The device is rated for 250 V and 10 A with a 3x1-pole wiring configuration (off switch). It uses a wired connection, is non-illuminated, and employs a rocker lever actuator suitable for panel mounting in industrial environments.
Yes. With IP20 protection, a 3-gang rocker configuration, and 10 A current rating, it is well-suited for indoor automation cabinets and machine enclosures where robust control is required and lighting indicators are unnecessary.
The product supports CMRT reporting and ETIM EC001590 installation switch standard. It is IP20-rated for environmental protection. While CE/UL markings are common in the industry, the provided data confirms CMRT and ETIM compliance and IP20 protection; verify regional certification requirements for your application.
The stick-and-screw mounting simplifies field installation, while the flush-mounted design reduces panel depth and wiring complexity. The non-illuminated, yellow RAL 1026 actuator provides immediate visual identification, aiding safety in busy environments and reducing maintenance time by minimizing misoperation.
