ABB 2CHH590345A6065 Flush Mounted Off Switch - IP20
Part Number: 2CHH590345A6065
Quick Summary
ABB 2CHH590345A6065 Flush Mounted Off Switch is a three-gang control device designed for compact panel enclosures and machine control. This solution helps panel builders reduce footprint while maintaining clear, reliable operation in demanding environments. The unit features IP20 protection, non-illuminated operation, and a durable thermoplastic body to withstand daily industrial use. By combining a robust rocker lever with a 3x1-pole wiring configuration, it simplifies installation and panel routing. The product aligns with ETIM EC001590 installation switch standards and CMRT reporting, supporting compliance across sourcing and manufacturing processes. For integrators seeking consistent color-coding and fast maintenance, this switch delivers tangible value in both reliability and lifecycle cost.
Product Information
Extended Description

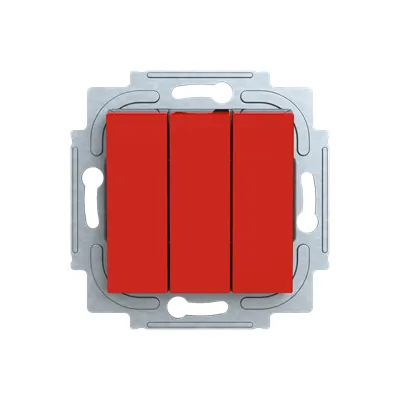

2CHH590345A6065 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 3024 - Luminous Red
Color
red
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6065
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: Flush Mounted Mounting Type reduces panel depth and creates a clean, professional look while improving safety and ease of cleaning in control rooms; this translates to quicker panel assembly and lower rework costs in production lines. Feature → Business Impact → Application: Stick and Screw fasteners enable secure mounting in varied panel thicknesses, reducing vibration risk and loosening in harsh environments; engineers can install with confidence in machine dashboards, power distribution panels, and enclosure doors. Feature → Business Impact → Application: IP20 protection minimizes dust ingress and incidental contact, extending component life and reducing maintenance cycles in automotive, packaging, and material-handling applications. Feature → Business Impact → Application: 3x1-pole wiring with a non-illuminated rocker provides straightforward wiring schematics; technicians can perform on-site wiring in minimal time, lowering commissioning time. Feature → Business Impact → Application: Thermoplastic, glossy finish offers chemical resistance and easy wipe-down, supporting hygiene and longevity in food processing and pharma environments. Feature → Business Impact → Application: RAL 3024 luminous red color improves operator visibility and error reduction in high-traffic control rooms; color-coding enhances safety and quick recognition during routine operations. Feature → Business Impact → Application: Rated 250 V and 10 A maximum current ensure compatibility with common control circuits, enabling safe interfacing with relays, contactors, and PLC inputs in factory automation. Feature → Business Impact → Application: ETIM EC001590 and CMRT alignment provide a clear compliance path for installation switches and responsible sourcing, reducing supplier audits and cycle times for OEMs. Feature → Business Impact → Application: Replaced Product ID is maintained for legacy systems, enabling seamless migration and traceability in maintenance programs.
Get a Quick Quote for a ABB 2CHH590345A6065
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6065?
Enquire Now
FAQs
The device uses flushMounted mounting with stick and screw fastening, allowing secure installation in slim panel profiles. This combination minimizes panel intrusion while providing reliable retention in vibration-prone environments. For installers, the method simplifies alignment and reduces the risk of loosened switches during operation, contributing to faster commissioning and longer service life.
This 2CHH590345A6065 off switch operates at 250 V with a rated current of 10 A and a maximum switching current of 10 A. It is designed for non-illuminated operation and wired configurations. These specs ensure compatibility with common control circuits, relays, and PLC inputs while maintaining safe discharge and minimal contact wear in automated lines.
Yes. The switch features an IP20 protection rating, which provides protection against solid objects larger than 12.5 mm and incidental contact with internal components. While not splash-protected, it is well-suited for indoor industrial panels, electrical cabinets, and dry, dust-lean environments when installed in appropriate enclosures.
The product aligns with ETIM 9 EC001590 for installation switches, improving interoperability in procurement systems. It also carries CMRT documentation, supporting responsible sourcing and supply chain transparency. While CE marking isn’t explicitly listed in the data, these classifications help ensure regulatory alignment within typical industrial automation scenarios.
The compact, three-gang design reduces panel footprint and wiring complexity, lowering material and installation time. The durable thermoplastic body resists wear and simplifies cleaning, reducing maintenance costs. Clear color-coding (RAL 3024 red) and a reliable non-illuminated rocker help operators quickly identify status, improving uptime and overall ROI in high-volume production environments.
