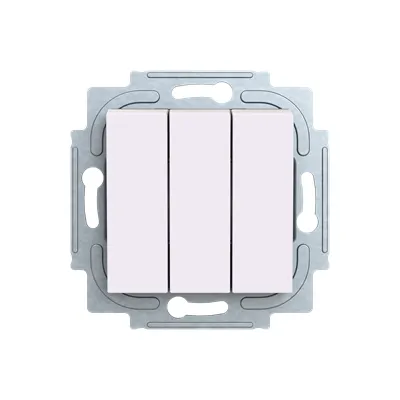

ABB 2CHH590345A6068 Flush-Mounted Off Switch 3x1-Pole 10A
Part Number: 2CHH590345A6068
Quick Summary
ABB 2CHH590345A6068 Flush-Mounted Off Switch 3x1-Pole 10A enables compact panel control. Installing in tight control cabinets is simplified by a stick-and-screw mounting method and a built-in 40 mm depth. This unit carries IP20 protection with CMRT and ETIM 9 EC001590 classifications, supporting safe operation and responsible sourcing across regional builds. The 250 V, 10 A rating delivers dependable performance, while a lacquered matte plastic exterior maintains ABB aesthetics and durability. When upgrading legacy panels or deploying standardized modules, this switch offers repeatable installation, predictable spare-part planning, and a consistent user experience for technicians.
Product Information
Extended Description
2CHH590345A6068 ABB: Switch with rocker 3gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Stick and Screw
Degree of Protection
IP20
Number of Rocker Switches
3
Wiring Configuration
Off switch 3x1-pole
Actuator Type
Rocker lever
Connection Type
Wired
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Surface Finishing
Lacquered | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 7001 - Silver Grey
Color
titanium
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CHH590345A6068
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: The flush-mounted design reduces cabinet depth and delivers a seamless panel appearance, saving space and improving safety in crowded control rooms. The stick-and-screw fastening simplifies retrofits, enabling technicians to complete replacements faster with less risk of misalignment. Ideal for modern automation panels where a compact, non-illuminated switch fits tight layouts. Feature → Business Impact → Application: Rated at 250 V and 10 A, this module handles standard control circuits with predictable switching margins, reducing the need for overrating components. The 3x1-pole rocker arrangement supports independent pole control, enabling straightforward wiring schemes in machine automation cabinets and interlock sequences. Feature → Business Impact → Application: IP20 protection and a lacquered matt surface provide durable indoor protection against dust while maintaining a clean, professional appearance in production environments. The titanium color and RAL 7001 silver-grey ensure consistent ABB branding across panels. Feature → Business Impact → Application: Built-in dimensions 81 mm square and 40 mm built-in depth simplify layout planning and fastens in shallow enclosures, improving installation efficiency and reducing enclosure redesign costs. Compatibility with wired connections supports rapid integration into existing control networks. Feature → Business Impact → Application: Non-illuminated operation minimizes power consumption and reduces risk of glare in dim environments, while the 3-gang configuration enables consolidated control of multiple circuits from a single module, enhancing maintenance predictability and spare-part standardization.
Get a Quick Quote for a ABB 2CHH590345A6068
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHH590345A6068?
Enquire Now
FAQs
This unit uses a flush-mounted design with a stick-and-screw fastening method, designed for 81x81 mm panel openings and a built-in 40 mm depth. It is IP20 rated for indoor environments and supports a 250 V, 10 A load. Ensure proper clearance for wiring and confirm panel suitability before retrofitting older enclosures.
Wiring configuration is Off switch 3x1-pole with a wired connection. Connect each rocker to its respective circuit within the 250 V supply, observing conductor sizing and safety standards. Use appropriate strain relief and secure terminations to prevent loose connections and ensure reliable switching across all three poles.
Yes, the device carries IP20 protection, making it suitable for indoor control panels in clean, dry environments. Avoid exposure to dust-heavy or outdoor conditions. Use a protective enclosure if installation area poses potential ingress risks, and confirm compatibility with any surrounding equipment or interlocks.
The product aligns with CMRT for Conflict Minerals reporting and conforms to ETIM 9 EC001590 classification for installation switches. It also features a lacquered matt finish and RAL 7001 color, providing consistent visual branding and material traceability within ABB product families.
With a robust 250 V, 10 A rating and a simple stick-and-screw mounting, maintenance is straightforward and parts replacement is predictable. The compact 81x81 mm footprint reduces panel redesigns, while non-illuminated operation minimizes wear and energy use. Consistent ABB aesthetics also support reduced training and faster technician onboarding.
