2CHH702182A4018
Part Number: 2CHH702182A4018
Product Information
Extended Description

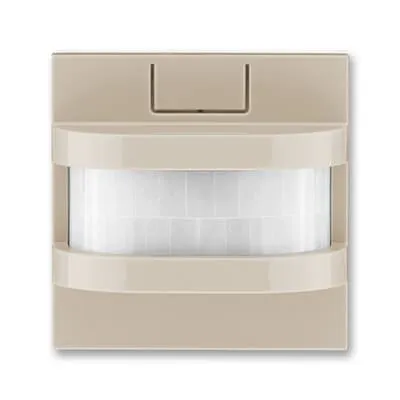

2CHH702182A4018 ABB: Switching element: triac Detection angle: approx. 180° (1 plane) Adjustable values (on the back of the cover): lighting threshold (1 - 1000 lx) sensitivity switch-off delay (5 sec - 10 min, or 15 / 30 / 45 / 60 min by pressing integrated button) Operating temperature: –10 °C to +55 °C 40 - 450 W for Incandescent lamp 230 V AC, 2-wire connection 36)
Mounting Type
Flush Mounted
Mounting Height
Maximum 1.2 m
Degree of Protection
IP20
Measuring Range
0 MTR
Minimum Switching Time
Switch-On 5 second [unit of time]
Battery Weight
0 g
Number of Batteries
0
Sensor Detection Range
Horizontal 0...180 °
Design Range
Levit
Material
Plastic | Thermoplastic
Color
brown
Product Net Weight
42 g
Replaced Product ID (OLD)
000000001000384640
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000138 - Sensor element for movement sensor
