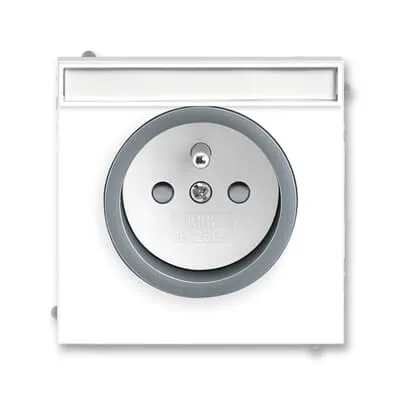

2CHM192352A4044
Part Number: 2CHM192352A4044
Product Information
Extended Description
2CHM192352A4044 ABB: Screwless terminals. Fixation via screws only. IP 40 16 A, 250 V AC
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP40
Number of Phases
1
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Plug Clamp
Socket Outlet Type
Power Socket Outlets - French acc. to NF C 61-314
Short-Circuit Current Rating (SCCR)
0 A
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50...50 Hz
Rated Frequency (f)
50 ... 50 Hz
Design Range
Neo
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
Yes
Color
white
Product Net Weight
72.2 g
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
5519M-A02352 44
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Comformity for 5519
ETIM 9
EC000125 - Socket outlet
