2CHM912031A4236
Part Number: 2CHM912031A4236
Product Information
Extended Description

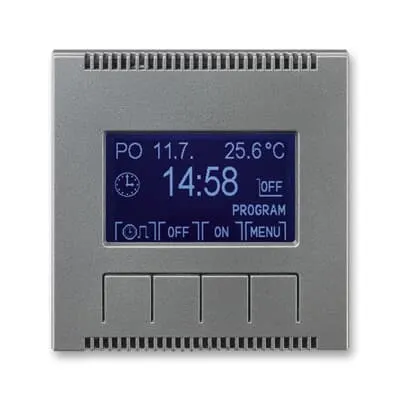

2CHM912031A4236 ABB: Control unit (must be used with switching unit). Operating modes: manual, automatic, automatic Astro, timer, holiday 3 time programmes (70 time marks each –min. interval 5 min days of week 1, 2 … , 7, 1 - 5, 6 - 7, 1 - 7) Software switch-off, Astro function (geographic coordinates, time zone, sunrise and sunset adjustment), optional response to control by external contact, inversion of output function, operating hours counter, automatic winter/summer time change, room temperature indication, push-buttons lock, display brightness and contrast adjustment, language selection (CZ, EN, RUS). Power reserve: approx. 90 days (rechargeable Li cell) The display is lit only when supplied with 230 V. Operating temperature: 0 °C to +50 °C
Mounting Type
Flush Mounted
Type of Fastening
Clamp
Number of Gangs
3
Minimum Switching Time
5 second [unit of time]
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Control element
Battery Chemical Composition
Lithium
Battery Type
Industrial
Battery Weight
0.91 g
Number of Batteries
1
Frequency (f)
50...50 Hz
Rated Frequency (f)
50 ... 50 Hz
Design Range
Neo
Surface Finishing
Lacquered | Matt
Material
Plastic
Color
stainless steel
Product Net Weight
50 g
Screen Size
2.29 in
Replaced Product ID (OLD)
3292M-A20301 36
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001594 - Time switch clock for domestic switching devices
