2CHN066541C4500
Part Number: 2CHN066541C4500
Product Information
Extended Description

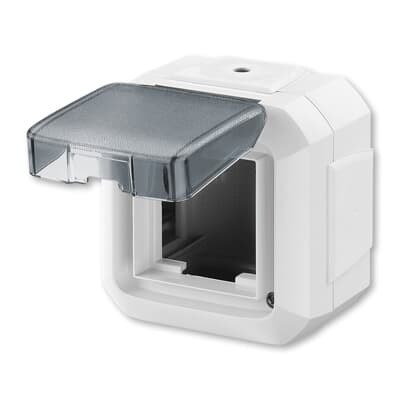

2CHN066541C4500 ABB: Installation box with lid, for 45Ă—45 inserts, for multiple mounting, surface-mounted
Mounting Orientation
Horizontal | Vertical
Degree of Protection
IP54
Number of Gangs
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Surface mounted housing
Opening Shape
Angular
Battery Weight
0 g
Number of Batteries
0
Design Range
Variant+
Surface Finishing
Untreated | Matt
Material
Material quality: Thermoplastic | Material: Plastic
Color
white
Product Net Weight
118.8 g
Replaced Product ID (OLD)
3903N-C06541 B
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000080 - Surface mounted box for flush-mounted switching equipment
