2CHQ210120F4603
Part Number: 2CHQ210120F4603
Product Information
Extended Description

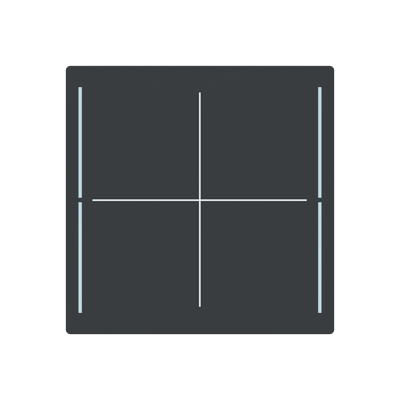

2CHQ210120F4603 ABB: ABB-free@home® / KNX touch keypad for BAU-F-0.1-508 and BA/U1.0.21 Anthracite
Instructions and Manuals
9AKK108469A4259, 9AKK108469A8005
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +40 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK108469A3567, 9AKK108469A4773, 9AKK107046A5137, 9AKK107046A5138
Compatible Bus Systems
free@home (TP) | KNX (TP)
Product Range
KNX | free@home
Number of Batteries
0
Rated Voltage (Ur)
20 ... 32 V
Auxiliary Voltage AC/DC
24 V DC
Design Range
SIDUS® Touch
Color
anthracite
Product Net Weight
36 g
Built-In Depth (t2)
32 mm
Replaced Product ID (OLD)
2CHQ210120F4603
E-Number (Switzerland)
305165042
RoHS Information
RoHS - Product Declaration (.PDF) [EN] BAU-F-0.1-508
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] BAU-F-0.1-508
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
