2CHQ210121B4601

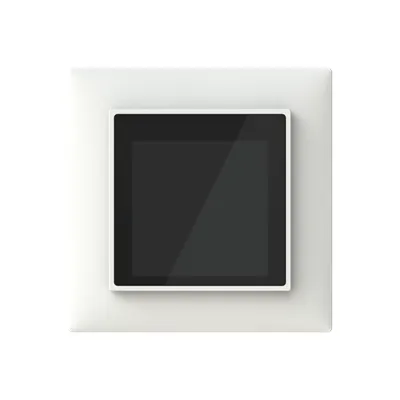

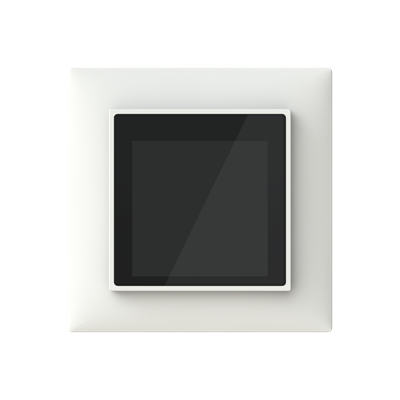

2CHQ210121B4601 ABB: Freely programmable touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. The display is available for Sidus range in assemblies: B, E, AP and standalone with reduction frame. KNX and free@home functions: • A total 12 control elements are displayed on a maximum of 12 pages • 12 fault and alarm messages • 10 logic functions • 10 weekly timers • 10 scene actuators • 1 integrated temperature controller (RTC) • Page display with a maximum of 4 touch surfaces on one page • Primary function 12 fault and alarm messages • Integrated temperature sensor • Haptic feedback • Proximity sensor • Brightness sensor • 1 binary input or external temperature sensor input (PT1000 / 6226/T) External power supply needed: 20-32 VDC (SELV) Number of bus subscribers: 1 Optional Removal protection: TZE/U.0.xx.CK Display size: 6,10cm (2.4”) Display resolution: 240*240 Display screen: IPS display Dimensions (L x W x D): (55mm x 55mm x 32mm) Display surface: glass black (-825) Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. - white
