2CHS952389C4568
Part Number: 2CHS952389C4568
Product Information
Extended Description

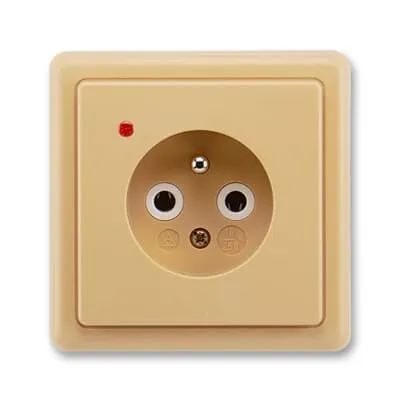

2CHS952389C4568 ABB: 5597-2389D2 Outlet with pin, overvoltage protection 5597-2389D2
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP20
Number of Phases
1
Number of Active Pin Terminals
2
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Power Socket Outlets - French acc. to NF C 61-314
Battery Weight
0 g
Number of Batteries
0
Short-Circuit Current Rating (SCCR)
0 A
Rated Voltage (Ur)
230 V
Rated Current (In)
16 A
Frequency (f)
50...50 Hz
Rated Frequency (f)
50 ... 50 Hz
Design Range
Classic
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 1001 - Beige
Color
beige
Product Net Weight
90 g
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
5597-2389D2
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
