2CHT196995A6241
Part Number: 2CHT196995A6241
Product Information
Extended Description

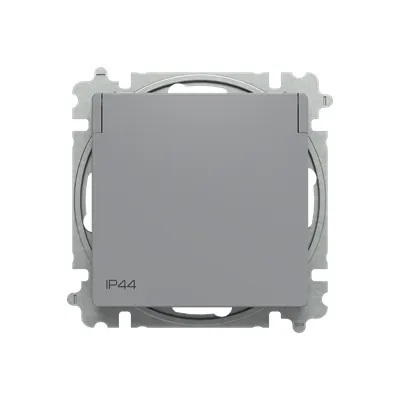

2CHT196995A6241 ABB: Earth-pin socket outlet IP44
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Screw
Degree of Protection
IP44
Number of Phases
1
Number of Gangs
1
Connection Type
Push-In
Socket Outlet Type
Earthing Pin
Short-Circuit Current Rating (SCCR)
0 A | 0 kA
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Rated Frequency (f)
50 Hz
Design Range
Zoni
Surface Finishing
Lacquered | Matt
Material
Plastic | Thermoplastic
Legend
Degree of protection (IP)
Label Space Provided
No
Color
grey
Product Net Weight
88.75 g
Built-In Depth (t2)
24.8 mm
Replaced Product ID (OLD)
2CHT196995A6241
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Environmental Product Declaration - EPD
EPD R60 Earth-pin single socket outlet 6619
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
84cc4aea-b86f-4f28-a1cf-2b3d2d82752c Czech Republic (CZ)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity Socket-outlet, flush type, pin-earth - 6619
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
