ABB 2CHX580134A4000 Flush Mounted Off Switch - IP20
Part Number: 2CHX580134A4000
Quick Summary
ABB 2CHX580134A4000 flush mounted 1-pole off switch with glow lamp for control panels. Engineers often contend with crowded enclosures where wiring complexity and unclear status indicators slow projects. CE conformity, IP20 protection, and RoHS/REACH compliance ensure safety, reliability, and regulatory alignment in industrial environments. With a compact 84 by 84 millimeter face, screw mounting, and a 19 millimeter built-in depth, installation is straightforward and repeatable. Optional illumination further enhances visibility in dim environments, helping operators confirm switch states at a glance. This combination translates into lower installation time, reduced field wiring errors, and predictable performance across machines and panels.
Product Information
Extended Description

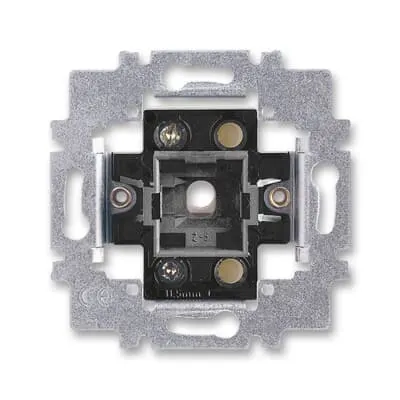

2CHX580134A4000 ABB: Switch insert 1-pole
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Screw
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
84 mm
Product Net Height
84 mm
Product Net Depth / Length
51 mm
Product Net Weight
45.5 g
Built-In Depth (t2)
19 mm
Replaced Product ID (OLD)
3558-A01340
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity for 3558
ETIM 9
EC001590 - Installation switch
Flush-mounted design with screw fastening minimizes panel cutouts and assembly time, delivering tangible labor savings on high-volume builds and enabling cleaner panel aesthetics in control cabinets. IP20 protection shields the switch from incidental contact and basic dust intrusion, reducing the risk of faults in indoor factory environments and improving long-term reliability. The 250 V rated voltage and 10 A rated current cover common control-relay and lighting circuits, simplifying wiring schemes and reducing the need for additional contactors. The glow lamp provides intuitive, at-a-glance status indication; when illumination is optional, it supports operations in low-light areas and during night shifts, boosting operator efficiency. RoHS and REACH declarations, along with CE conformity, help ensure regulatory compliance and simplified supplier audits. Lightweight construction (45.5 g) and compact dimensions (84 x 84 x 51 mm) support easy handling and retrofit into existing panels, while built-in depth of 19 mm minimizes intrusion into crowded enclosures. WEEE category 5 and ETIM classification further aid with logistics, maintenance planning, and technical documentation for procurement teams.
