ABB 2CHX580734A4000 Flush Mounted Inserts - IP20
Part Number: 2CHX580734A4000
Quick Summary
ABB 2CHX580734A4000 is a flush mounted intermediate switch for control panels and machine enclosures. Engineers often struggle with fitting reliable illumination and robust switching in compact spaces, and this module addresses those constraints. It carries CE conformity, RoHS compliance, and IP20 protection, supporting safe operation in standard industrial environments. The glow lamp option provides operator feedback, while the device’s 250 V / 10 A rating covers typical control circuits. With a 1-gang, 1-rocker design and screw terminals, it enables quick, maintenance-friendly wiring and predictable performance. This combination supports reduced downtime and streamlined compliance in panel assemblies.
Product Information
Extended Description

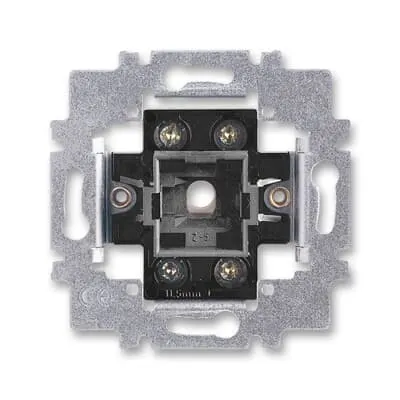

2CHX580734A4000 ABB: Switch insert intermediate
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Screw
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
84 mm
Product Net Height
84 mm
Product Net Depth / Length
51 mm
Product Net Weight
51.6 g
Built-In Depth (t2)
19 mm
Replaced Product ID (OLD)
3558-A07340
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity for 3558
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted installation with screw fastening. Benefit: Delivers a clean panel appearance and secure mounting in tight enclosures, reducing misalignment and panel gaps. Application: Ideal for retrofit projects and new panel builds where space is at a premium. The design supports fast, vibration-resistant operation. Feature: Electrical capability of 250 V and 10 A with a maximum switching current for fluorescent lamps. Benefit: Provides compatibility with common control circuits and lighting loads, minimizing circuit redesign costs. Application: Suitable for panel-mounted lighting control and auxiliary switching in machines and conveyors. Feature: Glow lamp indicator with optional illumination. Benefit: Delivers visible status feedback to operators, enhancing safety and line readiness. Application: Use in panels where quick status checks are required without opening enclosures. Feature: 1-gang, 1-rocker actuator with screw terminals and intermediate wiring. Benefit: Simplifies wiring discipline, reduces install time, and improves reliability in dense control cabinets. Application: Standardized interface for single-switch control points in compact panels. Feature: Environmental and regulatory compliance (IP20, RoHS, REACH, CE, WEEE). Benefit: Lowers compliance risk, supports sustainable manufacturing, and eases audit processes. Application: Fits industrial environments that demand standard protections and material declarations. Feature: Compact footprint with defined dimensions (84 mm x 84 mm x 51 mm) and light built-in depth (19 mm). Benefit: Enables dense panel layouts and minimal intrusion into enclosure space. Application: Suitable for front-mounted control inserts in compact control cabinets. Feature: Untreated surface finish with flexible label space options. Benefit: Enables customization and fleet-wide labeling for standardized industrial installations. Application: Panel labeling and branding across machines and facilities.
Get a Quick Quote for a ABB 2CHX580734A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX580734A4000?
Enquire Now
FAQs
The unit is designed for 1-gang flush mounted installations with screw fastening, providing a clean panel footprint and straightforward wiring. Its 84x84 mm faceplate and 51 mm depth fit common control cabinets, and the screw terminals simplify secure connections. For retrofits, measure the existing cutout and ensure IP20 the rated environment is suitable for the enclosure.
The device is rated for 250 V and 10 A, with a maximum switching current suitable for fluorescent lighting loads of up to 10 A. This makes it appropriate for standard panel lighting and control circuits without needing a separate contactor for many installations, reducing component count and wiring complexity.
Yes, the switch includes a glow lamp as an indicator option, providing operator feedback. Illumination is optional depending on the model variant and installation, allowing you to tailor the unit to scenarios requiring visible status indicators or reduced panel glare in low-light environments.
The device carries CE conformity and RoHS declarations, with REACH information indicating compliance for substances above thresholds. WEEE categorization is noted as small equipment, which informs recycling and end-of-life handling. These certifications help align panel design with regulatory requirements in many industrial regions.
Common use cases include control panels for lighting and auxiliary circuits, machine enclosures requiring intermediate switching, and compact control points where a single rocker in a 1-gang design is sufficient. Its small footprint, standard screw terminals, and protective rating support reliable, maintainable installations with predictable lifecycle costs.
