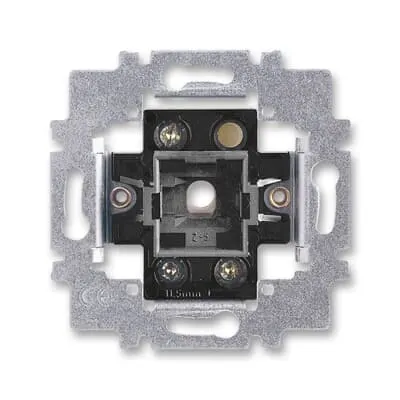

ABB 2CHX582136A4000 Flush Mounted Switch - Glow Lamp IP20
Part Number: 2CHX582136A4000
Quick Summary
ABB 2CHX582136A4000 Flush Mounted Switch Insert with Glow Lamp controls 1-pole circuits in industrial panels. Finding reliable, compact control switches that fit flush panel spaces without sacrificing illumination is a common challenge. It ships CE compliant, RoHS certified and IP20 protected, ensuring safe indoor operation in control cabinets. This combination supports installation efficiency, reduces downtime, and helps maintain regulatory compliance across manufacturing lines. Engineered for 250 V and 10 A loads, its glow lamp provides orientation at a glance, improving operator accuracy in tight spaces. The flush-mount design, screw fastening, and 19 mm built-in depth simplify retrofits and new installations alike. With IP20 protection and compliance data aligned to EU directives, it supports safe integration in enclosures while staying cost-efficient.
Product Information
Extended Description
2CHX582136A4000 ABB: 3558-A21342 Switch insert 1-pole with light 3558-A21342
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Screw
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Weight
47.8 g
Built-In Depth (t2)
19 mm
Replaced Product ID (OLD)
3558-A21342
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity for 3558
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted 1-pole design with screw fastening. Benefit: Saves panel space and reduces installation time, enabling quicker line setup and easier retrofits in dense control panels. Application: Industrial automation panels and machine enclosures where space is at a premium. Feature: 250 V rated voltage and 10 A rated current with a 10 A maximum switching current for fluorescent lamps. Benefit: Handles common machine lighting and control loads reliably without thermal stress or frequent replacements. Application: Lighting control and motorized panel functions in manufacturing lines. Feature: IP20 protection and 19 mm built-in depth. Benefit: Durable indoor use with minimal ingress risk and straightforward integration into standard panel cutouts. Application: Dry indoor control environments in equipment racks and dashboards. Feature: Glow lamp illumination and 1-gang, off-switch configuration. Benefit: Immediate status indication improves operator awareness and reduces misoperation during setup and maintenance. Application: Panel-mounted indicators for process visibility. Feature: RoHS and CE compliance with REACH information and WEEE alignment. Benefit: Regulatory assurance lowers risk in audits and supports sustainable lifecycle management. Application: Projects requiring EU compliance documentation and responsible end-of-life handling. Feature: Replacement compatibility with 3558-A21342 and documented “Replaced Product ID.” Benefit: Smooth retrofits with minimal downtime and proven upgrade paths. Application: Upgrading legacy installations in legacy automation lines.
Get a Quick Quote for a ABB 2CHX582136A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX582136A4000?
Enquire Now
FAQs
The unit is designed as a flush-mounted, 1-gang insert with screw fastening for secure panel installation. It features a built-in depth of 19 mm to fit typical control panels and enable retrofits without protruding hardware. It replaces the older 3558-A21342 family with a straightforward mounting footprint suitable for standard cutouts.
It operates at 250 V with a rated current of 10 A and a maximum switching current of 10 A for fluorescent lamps. It functions as an off switch in a 1-pole configuration and uses screw terminals for reliable wiring. The glow lamp provides status indication to prevent misoperation during maintenance.
Yes, it is intended for dry indoor locations such as manufacturing control panels. The IP20 rating protects against dust ingress; it is CE and RoHS compliant, which aligns with common industrial compliance requirements. It is not designed for outdoor or wet environments, but its compact flush-mounted form maximizes panel real estate indoors.
The device carries CE conformity and RoHS compliance, with REACH information and WEEE categorization. It references the EU directive 2011/65/EU and amendments, and provides documentation for traceability, including the replacement ID 3558-A21342. These certifications support regulatory audits and sustainable end-of-life handling in modern facilities.
The compact, robust design reduces panel space requirements and simplifies wiring with screw terminals, lowering installation time and maintenance overhead. Glow lamp status improves setup accuracy and reduces misreads, contributing to fewer downtime events. Long-term RoHS/CE compliance minimizes regulatory risk and replacement frequency, delivering a favorable total cost of ownership for high-demand production lines.
