ABB 2CHX585234A4000 Flush Mounted Inserts - IP20 CE
Part Number: 2CHX585234A4000
Quick Summary
ABB 2CHX585234A4000 flush mounted inserts provide a robust double rocker switch for control panels. Engineers often struggle with compact panel layouts, reliable mounting, and predictable electrical characteristics in harsh industrial environments. They come with CE conformity, RoHS and REACH compliance, and ETIM 9 installation classification to support regulatory and sourcing requirements. By combining space efficiency with straightforward screw mounting and non-illuminated operation, this module helps reduce installation time and maintenance costs while improving system reliability.
Product Information
Extended Description

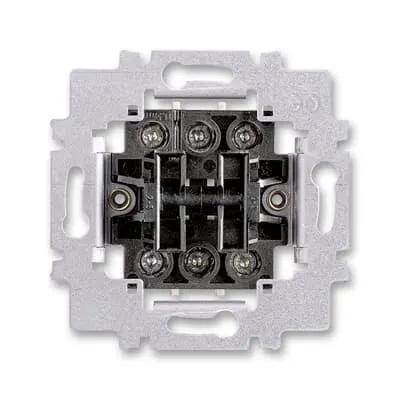

2CHX585234A4000 ABB: Switch insert double 2-way
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Number of Gangs
1
Number of Rocker Switches
2
Wiring Configuration
Alternating-/alternating switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Screw
Illumination
Non-illuminated
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
84 mm
Product Net Height
84 mm
Product Net Depth / Length
51 mm
Product Net Weight
55.1 g
Built-In Depth (t2)
19 mm
Replaced Product ID (OLD)
3558-A52340
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity for 3558
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted installation reduces panel depth and streamlines assembly. Impact: This minimizes panel footprint, speeds installation, and reduces field wiring errors. Application: Ideal for compact control panels in machine automation and equipment housings. Feature: 1-gang, 2-rocker arrangement with alternating wiring. Impact: Enables clear operator controls and straightforward wiring diagrams for 250 V, 10 A loads. Application: Suitable for multi-function control points in a single module. Feature: IP20 environmental protection and non-illuminated operation. Impact: Delivers reliable performance in protected indoor spaces; non-illuminated reduces power draw and simplifies labeling. Application: Panel mounting in assembly lines and process equipment. Feature: RoHS/REACH and CE declarations; ETIM 9 classification; WEEE category. Impact: Ensures regulatory compliance, easier supplier qualification, and responsible disposal. Application: For regulated industries and global sourcing. Feature: Wiring compatibility and built-in depth specification. Impact: Screw connection provides secure terminations; built-in depth of 19 mm and width/height of 84 mm optimize panel fit. Application: Reduces mis-wiring and simplifies maintenance in engineered systems.
