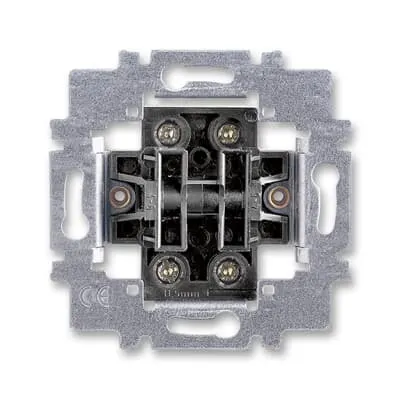

ABB 2CHX588734A4000 Flush Mounted Inserts - IP20
Part Number: 2CHX588734A4000
Quick Summary
Flush Mounted Inserts from ABB 2CHX588734A4000 deliver reliable double-pole control for compact control panels and machine enclosures. This design reduces panel depth and streamlines wiring, addressing common installation frustrations faced by automation engineers. The unit carries CE conformity, RoHS and REACH declarations, along with IP20 protection to suit internal, light-duty environments. With a 250 V rating and 10 A current capability, it supports standard control circuits while maintaining sturdy actuation through a screw-mounted, 1 rocker switch arrangement. For procurement teams, the combination of compact footprint, durable thermoplastic construction, and clear labeling supports fast sourcing, easier stocking, and predictable field performance in industrial applications.
Product Information
Extended Description
2CHX588734A4000 ABB: Switch insert double 1-pole retractive
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
2P
Number of Gangs
1
Number of Rocker Switches
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker
Connection Type
Screw
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
0
Number of Contacts NC
2
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
white
Product Net Weight
52.4 g
Built-In Depth (t2)
19 mm
Replaced Product ID (OLD)
3558-A87340
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity for 3558
ETIM 9
EC000029 - Push button
Feature: Mounting Type is Flush Mounted → Business Impact: This slim profile frees space in crowded control panels and speeds assembly, reducing overall enclosure depth and installation time. Application: Ideal for machine dashboards and modular panel layouts where front-face integration matters. Feature: Contacts Configuration is 1 NO, 0 NC with 2 poles → Business Impact: Enables reliable single-throw operation with clear fail-safe behavior, supporting straightforward circuit wiring and maintenance. Application: Standard control circuits in automation lines and panel-mounted switches. Feature: Rated Voltage and Current are 250 V / 10 A → Business Impact: Handles common mains loads with margin for surges, reducing the need for oversized components. Application: Relay-free control panels and small motor control applications. Feature: Environmental Protection IP20 and Material: Plastic | Thermoplastic → Business Impact: Provides basic ingress protection and durable non-metallic construction suitable for indoor use, lowering corrosion risk and thermal concerns. Application: Internal field panels and equipment housings in clean environments. Feature: Compliance and WEEE/RoHS/CE Declarations → Business Impact: Simplifies regulatory audits and supplier qualification, streamlining procurement across regions. Application: Global manufacturing lines and contractor QA processes. Feature: Built-In Depth 19 mm and Weight 52.4 g → Business Impact: Minimizes panel protrusion and total installed weight, improving aesthetics and handling in tight spaces. Application: Retrofit projects and compact control enclosures.
Get a Quick Quote for a ABB 2CHX588734A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX588734A4000?
Enquire Now
FAQs
The ABB 2CHX588734A4000 uses a flush mounted installation with screw fastening. This combination provides a secure, vibration-resistant fit suitable for panel-mounted applications. It is designed for quick, reliable integration into standard control panels and machine enclosures where a clean front face is required.
The device is rated for 250 V and 10 A, with a 2-pole configuration and 1 NO, 0 NC contact arrangement. This makes it suitable for typical mains control circuits in industrial panels, enabling dependable actuation with minimal wiring complexity.
ABB 2CHX588734A4000 carries IP20 protection, which is adequate for interior, non-hazardous environments and indoor control panels. It is not rated for dust, water, or hazardous area exposure. For harsher environments, consider higher IP-rated inserts or enclosure protection measures.
This product includes CE declarations and RoHS/REACH compliance, along with WEEE categorization. These certifications support regulatory alignment, responsible end-of-life handling, and ease of supplier audits in global manufacturing and procurement workflows.
The unit has a built-in depth of 19 mm and weighs 52.4 g. These compact dimensions minimize front-panel protrusion and overall panel weight, enabling tighter layouts, lighter assemblies, and improved accessibility in retrofit or space-constrained machine enclosures.
