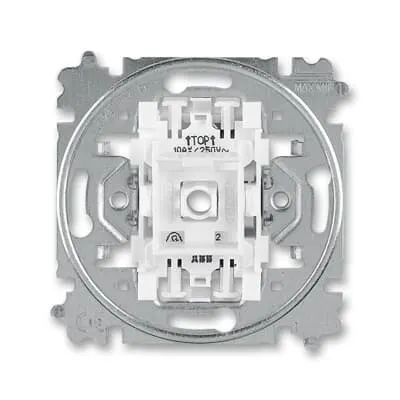

ABB 2CHX590135A4000 Flush Mounted Off Switch - IP20
Part Number: 2CHX590135A4000
Quick Summary
ABB 2CHX590135A4000 is a flush-mounted off switch, 1-pole, 10 A control device designed for compact panel installations. Engineers often struggle with space, wiring complexity, and secure mounting in tight control enclosures; this unit addresses those challenges with a slim profile and a reliable plug-clamp connection for fast, secure terminations. It complies with CE conformity, RoHS/REACH obligations, and IP20 ingress protection for safe indoor operation, aligning with EN 60947-5-1 switch standards. The combination of compact dimensions, clear electrical ratings, and robust lifecycle support helps reduce assembly time, maintenance effort, and overall equipment downtime, delivering tangible business value in automation projects.
Product Information
Extended Description
2CHX590135A4000 ABB: 3559-A01345 Switch insert 1-pole, screwless 3559-A01345
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
40.5 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A01345
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 64 %
Material Resource Reduction (wt. %)
Design for Reduced Resource Consumption - 0 %
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Improved Energy Efficiency for Customers
Process Efficiency - Product improves/optimizes process
Extended Product Lifetime
Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD R60 Switch inserts 3559
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature Flush Mounted mounting type → Business Impact Maximizes control cabinet space and improves panel aesthetics, enabling denser layouts in automation projects. Application Ideal for control panels, machine dashboards, and compact enclosures. Feature 1-pole, 1 rocker switch → Business Impact Simplifies wiring topology while maintaining reliable single-channel control, reducing wiring errors and installation time. Application Suitable for single-gang control circuits in industrial environments. Feature IP20 protection → Business Impact Provides ingress protection against dust and finger access, supporting safe operation in indoor electrical enclosures. Application Environments like machine panels and control cabinets benefit from enhanced safety margins. Feature Plug Clamp connection → Business Impact Speeds up terminations with secure, vibration-resistant wiring, lowering commissioning time. Application Common in modular panels and retrofit projects. Feature Non-illuminated rocker actuator → Business Impact Minimizes power consumption and maintenance while delivering clear on/off indication. Application Ideal for standard control circuits in non-illuminated signaling tasks. Feature 250 V rated voltage and 10 A rated current → Business Impact Ensures compatibility with typical control circuits and loads, reducing overrating and procurement complexity. Application Suitable for general automation panels and switchgear in industrial settings. Feature Built-In Depth 17 mm → Business Impact Supports shallow installation in tight enclosures, improving retrofit feasibility. Application Useful for retrofits where depth is a limiting factor. Feature Replaced product tracking (3559-A01345) → Business Impact Maintains BOM continuity and simplifies legacy replacements. Application Useful in maintenance planning and supply chain management. Each feature is aligned with long-tail keywords such as flush mounted switch, 1-pole off switch, plug clamp wiring, IP20 rated control, non-illuminated rocker switch, and control panel efficiency.
Get a Quick Quote for a ABB 2CHX590135A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX590135A4000?
Enquire Now
FAQs
Install the switch by positioning it flush within the panel cutout, secure using the screw fastening method, and attach conductors with the plug clamp terminals. Ensure the built-in depth of 17 mm fits your enclosure. Verify IP20 protection after mounting and test the 1-pole Off switch operation to confirm proper actuation in the panel.
The device is rated for 250 V and 10 A with a maximum switching current of 10 A for fluorescent lamp loads. It is designed for non-illuminated operation and uses a 1-pole off configuration. For higher inductive or motor loads, verify the contact ratings and consult ABB datasheets to prevent overcurrent conditions.
Yes. The switch is a 1-gang, 81 mm by 81 mm face-plate unit with flush-mounted mounting. It uses a screw fastening method and a plug-clamp connection, making it compatible with common control panels and standard enclosure cutouts used in industrial automation projects.
The product carries CE conformity and RoHS/REACH declarations, supports IP20 ingress protection, and aligns with EN 60947-5-1 for switch devices. It also references WEEE categorization and related environmental declarations, ensuring compliance for European and broader market deployments.
The plug-clamp wiring facilitates quick, secure terminations with reduced wiring errors, while the non-illuminated design lowers failure points. Its compact form factor and 1-pole configuration simplify replacements and retrofits in aging panels, contributing to lower maintenance costs and shorter downtime during part swaps or upgrades.
