ABB 2CHX590145A4000 Off Switch - Glow Lamp IP20
Part Number: 2CHX590145A4000
Quick Summary
2CHX590145A4000 Off Switch with Glow Lamp provides clear, visual control in flush-mounted panels and control enclosures. Engineers often contend with ambiguous status indicators and cramped layouts; this device consolidates switching and illumination in a compact footprint. The design carries CE conformity, RoHS and REACH compliance, plus IP20 protection for internal panel use, supporting reliable operation in industrial environments. By combining a 1-pole, 1-gang rocker switch with a built-in glow lamp, it delivers quick diagnostics and space-efficient integration, reducing panel depth, wiring complexity, and downtime while aligning with modern automation practices.
Product Information
Extended Description

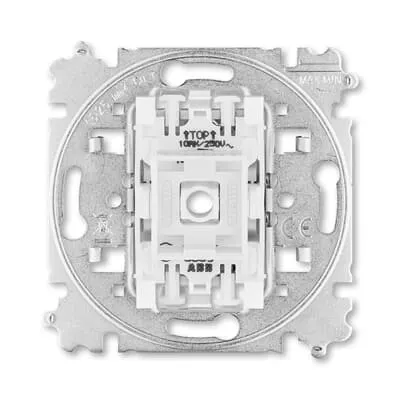

2CHX590145A4000 ABB: Rocker switch mechanism, 1gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
48.5 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A01445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted installation enables space-saving panel design and clean aesthetics. Business Impact: Improves enclosure utilization, reduces mounting depth and front-face footprint, enabling easier cabling in tight control panels. Application: Ideal for machine enclosures where a visible ON/OFF indication is needed without protruding hardware. Feature: 1-pole, 1-gang rocker with plug clamp wiring supports straightforward installation and dependable actuation. Business Impact: Simplifies field wiring, lowers installation time, and reinforces safety by providing decisive switch action. Application: Suitable for small control stations and local control panels in automation lines. Feature: Glow lamp illumination offers immediate status feedback even in low-light environments. Business Impact: Reduces misoperation risk and speeds fault diagnosis during machine startup or shutdown. Application: Common in process lines and packaging equipment where illuminated feedback is beneficial. Feature: IP20 protection and robust RoHS/REACH compliance ensure reliability in typical interior panel conditions. Business Impact: Enhances regulatory compliance and long-term durability while supporting sustainable product stewardship. Application: Ideal for indoor electrical installations in factories and workstations. Feature: 250 V rated voltage and 10 A rated current provide a practical load capacity for lighting and control circuits. Business Impact: Enables compliant yet cost-effective switching of common loads without over-specifying components. Application: Suitable for control of low-to-moderate power loads in automation panels. Feature: Mounting with claw or screw options and 81 x 81 mm face dimensions streamline panel integration. Business Impact: Flexible installation and predictable fit across standard industrial cutouts. Application: Useful when retrofitting existing panels or standardizing across equipment fleets. Feature: Optional illumination with a 1-pole off switch configuration supports clear status, with a built-in depth of 17 mm for compact assemblies. Business Impact: Reduces device footprint while preserving visibility and control in dense enclosures. Application: Applicable to compact control cabinets and 1-gang switch layouts in automated lines.
Get a Quick Quote for a ABB 2CHX590145A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX590145A4000?
Enquire Now
FAQs
The device supports flush mounted installation with mounting either by claw or by screw. This dual mounting approach gives installers flexibility in panel design, allows for faster retrofits, and ensures a secure fit within standard 81 x 81 mm faceplates, improving panel consistency and reducing field wiring challenges.
The switch is rated for 250 V and 10 A, with a maximum switching current suitable for fluorescent lamp loads up to 10 A. This makes it ideal for lighting and small control circuits in automation panels, while reminding users to select a higher-rated device for heavier machinery loads.
Yes, as a 1-pole, 1-gang rocker with a glow lamp and plug clamp connection, it provides clear status indication and reliable actuation within compact control panels. Its IP20 rating is appropriate for indoor industrial environments, and the compact built-in depth supports dense panel layouts typical in automation lines.
The switch carries CE conformity with the EU Declaration of Conformity and RoHS/REACH compliance. It features IP20 protection and WEEE categorization for small equipment, ensuring regulatory alignment across European markets and facilitating safe disposal and recycling in line with best practices.
Maintenance is streamlined by the device’s simple wiring via Plug Clamp, robust RoHS/REACH compliance reducing regulatory risk, and a built-in glow lamp that aids quick fault detection, lowering downtime. The compact footprint plus universal mounting options decrease panel redesign costs and accelerate installation, delivering measurable ROI for automation projects.
