ABB 2CHX590245A4000 Flush Mounted Insert - Glow Lamp
Part Number: 2CHX590245A4000
Quick Summary
ABB 2CHX590245A4000 Flush Mounted Insert is a 2-pole switch with glow lamp for panel-mounted control in industrial enclosures. Engineers often struggle with finding compact, illuminated switches that meet IP20 protection and safe 250 V/10 A operation while keeping wiring simple. This device carries CE conformity, RoHS and REACH compliance, and a WEEE category designation to support regulatory and sustainability goals. With its 81 mm square footprint and plug-clamp wiring, it enables streamlined panel installations, reduces downtime, and supports reliable, low-maintenance automation in harsh environments. For teams prioritizing reliability, ease of installation, and regulatory alignment, this switch offers tangible business value in control panels and machine interfaces.
Product Information
Extended Description

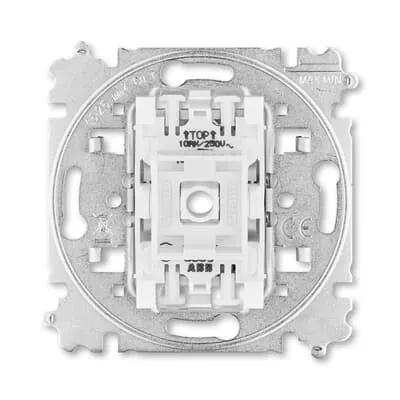

2CHX590245A4000 ABB: Rocker switch mechanism, DP 1gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Illuminated (on)
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
2-pole switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
52.6 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A02445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
