ABB 2CHX590545A4000 Flush Mounted Switch - Glow Lamp
Part Number: 2CHX590545A4000
Quick Summary
ABB 2CHX590545A4000 is a flush mounted two-gang rocker switch designed for control panels and equipment enclosures. This compact device delivers reliable, intuitive control in a front-mount format, helping engineers save valuable panel space without sacrificing operability. The switch includes a glow lamp indicator for quick status checks in low light environments and uses a straightforward plug clamp wiring approach for faster installation. It supports a series wiring configuration and offers mounting with claw or screws to fit varied panel designs. CE and RoHS compliance alongside REACH declarations ensure regulatory alignment across global supply chains. For procurement teams, standardized dimensions and availability support faster BOMs and reduced lifecycle costs while maintaining robust performance.
Product Information
Extended Description

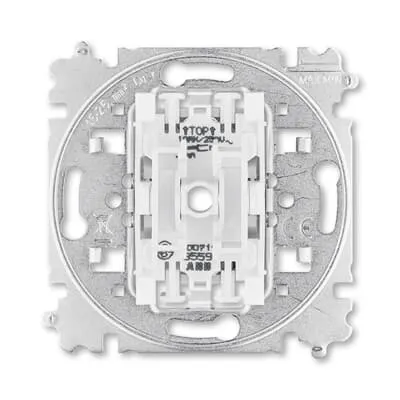

2CHX590545A4000 ABB: Rocker switch mechanism, 2gang 1way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
2
Number of Rocker Switches
2
Wiring Configuration
Series switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
51.25 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A05445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted design maximizes enclosure real estate and simplifies front-panel layouts. Business Impact: Improves panel density, reduces assembly time, and lowers manufacturing costs. Application: Control stations in machinery, process panels, and equipment enclosures. Feature: Two-gang, two rockers with a 250 V rated supply and 10 A rated current. Business Impact: Supports multiple circuits from a single device, reducing wiring complexity and inventory needs. Application: Lighting orientation and basic process control in compact control panels. Feature: Glow lamp indicator with optional illumination. Business Impact: Enhances visibility in low-light environments, decreasing operator errors and downtime. Application: Panel status signaling for CNCs, conveyors, and automation loops. Feature: Plug Clamp connection and series switching configuration. Business Impact: Streamlines installation, improves reliability, and eases field service. Application: Quick commissioning in new builds and retrofits. Feature: IP20 protection, RoHS/REACH compliant, CE declaration. Business Impact: Ensures safe indoor use, regulatory compliance, and sustainable procurement. Application: Industrial and commercial electrical installations requiring compliance and traceability. This combination of compact footprint, robust electrical ratings, and clear status indication makes the 2CHX590545A4000 a practical choice for standardized panels and modular enclosures, supporting repeatable assemblies and predictable maintenance cycles.
Get a Quick Quote for a ABB 2CHX590545A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX590545A4000?
Enquire Now
FAQs
The 2CHX590545A4000 is a two-gang flush mounted switch designed for 81x81 mm front panels. It supports mounting with claws or screws and uses a plug clamp connection for straightforward wiring, making it highly compatible with standard two-gang control panels and enclosures.
It is rated for 250 V and 10 A, with a maximum switching current suitable for fluorescent lamps up to 10 A. The device is RoHS and REACH compliant, with IP20 protection for indoor use, ensuring reliable performance in controlled environments.
Illumination is optional; the glow lamp provides status visibility when enabled. This enables quick recognition of switch state in low-light conditions without adding excessive power draw during normal operation.
The product carries CE conformity and RoHS compliance, along with REACH declarations. It is documented with an EU Declaration of Conformity and adheres to IP20 environmental protection standards for indoor electrical installations.
The 2CHX590545A4000 supports standardized, repeatable panel builds with plug clamp wiring, reducing commissioning time and field service complexity. Its compact size and reliable 10 A/250 V ratings lower wiring errors and component counts, delivering quicker ROI through faster deployments and easier lifecycle maintenance.
