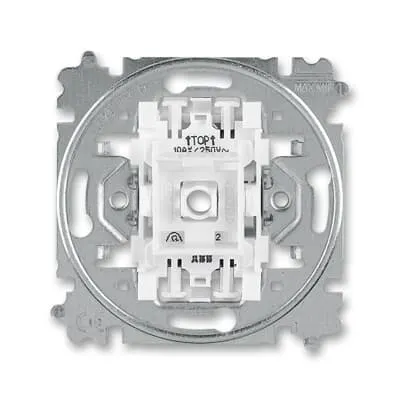

ABB 2CHX590635A4000 Flush Mounted Inserts - CE IP20
Part Number: 2CHX590635A4000
Quick Summary
ABB 2CHX590635A4000 flush mounted inserts provide a robust two‑way switch for control panels. Engineers face space constraints, wiring complexity, and reliability challenges in compact enclosures; this solution simplifies mounting with a screw or plug‑clamp connection while delivering consistent switching performance. The product carries CE conformity, IP20 protection, and RoHS/REACH compliance to meet modern regulatory demands and minimize risk in critical systems. By combining compact dimensions with modular ABB EcoSolutions thinking, it reduces installation time and maintenance cost. For panel builders and machine integrators, the result is faster commissioning, fewer field faults, and a clearer path to durable, energy‑efficient control hardware.
Product Information
Extended Description
2CHX590635A4000 ABB: 3559-A06345 Switch insert 2-way, screwless 3559-A06345
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Illuminated (on)
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
42.5 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A06345
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 64 %
Material Resource Reduction (wt. %)
Design for Reduced Resource Consumption - 0 %
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Improved Energy Efficiency for Customers
Process Efficiency - Product improves/optimizes process
Extended Product Lifetime
Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD R60 Switch inserts 3559
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature flush mounted design reduces panel footprint and simplifies front‑face aesthetics, enabling easier labeling and faster upgrades. Business impact: lower enclosure cost per point and quicker commissioning, with a neater installation that reduces inspection time and field wiring errors. Application: ideal for 1‑gang control panels in manufacturing lines where space is premium and reliability is critical. Feature plug clamp wiring plus screw fastening provides flexible installation options, cutting wiring time and making field servicing straightforward. Business impact: faster maintenance cycles, reduced labor cost, and improved uptime. Application: suitable for retrofit projects and modular panel assemblies using ABB replacement options such as 3559‑A06345. Feature 250 V, 10 A rating with a two‑way configuration aligns with standard lighting and control loads, offering predictable performance. Application: lighting control and signal routing in compact enclosures with minimal risk of contact wear. Feature IP20 protection and compact 81×81 mm footprint with 51 mm depth enables unobtrusive integration in console and cabinet interiors. Business impact: safer operation in clean environments and easier routing of conductors. Application: electrical installations in machine controls and panel assemblies where ingress protection is important. Feature RoHS and REACH declarations, plus WEEE categorization and EPD documentation, support regulatory compliance and sustainable procurement. Business impact: reduced compliance risk, easier audit trails, and enhanced sustainability storytelling for customers. Application: procurement and engineering workflows prioritizing responsible sourcing and lifecycle transparency. Feature ABB EcoSolutions alignment and take‑back options provide extended product lifecycle. Business impact: modularity supports refurbishment or recycling strategies, lowering total cost of ownership. Application: long‑term asset management in industrial facilities and automation projects.
Get a Quick Quote for a ABB 2CHX590635A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX590635A4000?
Enquire Now
FAQs
Yes. The 2CHX590635A4000 is a 1‑gang flush mounted switch insert that replaces the older 3559‑A06345, using either screw fastening or a plug clamp connection. It retains a 1 rocker, two‑way configuration and maintains the same backbox footprint for straightforward retrofit in compatible ABB enclosures and frames.
The device is rated for 250 V and 10 A nominal current, with a maximum switching current suitable for fluorescent lighting loads up to 10 A. This aligns with common panel lighting and control circuits, providing reliable operation while fitting within standard electrical safety margins.
Best suited for 1‑gang control panels, machine enclosures, and compact automation cabinets. Its flush mounted design and plug clamp wiring enable quick integration in tight spaces, while the optional illumination feature supports clear status indication in demanding environments like manufacturing lines and process controls.
The product carries CE conformity with EU Declaration of Conformity, RoHS and REACH declarations, and WEEE category 5 classification. It also features IP20 protection and an EPD document for environmental transparency, supporting regulatory compliance and sustainability reporting in procurement workflows.
The insert supports ABB EcoSolutions with modular construction, take‑back for recycling, and a design aligned with resource‑efficient manufacturing. This translates to easier upgrades, reduced field maintenance, and a clearer path to lower total cost of ownership through lifecycle management and recycling options.
