ABB 2CHX590645A4000 Other/Miscellaneous - IP20
Part Number: 2CHX590645A4000
Quick Summary
ABB 2CHX590645A4000 is a flush-mounted two-way rocker switch designed for compact panel installations and reliable lighting control in industrial enclosures. Engineers often struggle with space constraints and wiring complexity; this device minimizes both through a 1-gang, 2-way configuration and a plug clamp connection that speeds assembly. The part complies with essential standards and protections, including CE conformity, RoHS/REACH declarations, and an IP20 rating for indoor use. For panel builders and maintenance teams, this combination translates to reduced commissioning time and safer, more predictable operation. Secondary benefits include easy integration with existing ABB controls and compatibility with standard enclosure layouts to streamline procurement and stocking.
Product Information
Extended Description

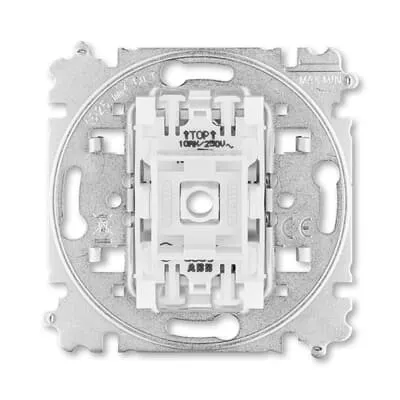

2CHX590645A4000 ABB: Rocker switch mechanism, 1gang 2way
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
50.5 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A06445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted Mounting Type → Business Impact: Clean front panel aesthetics and reduced enclosure depth, enabling tighter panel layouts and easier heat management. Application: Ideal for space-constrained control panels in manufacturing lines. Feature: 1 gang, 2 way Wiring Configuration → Business Impact: Flexible control of lighting circuits with a single actuator, reducing wiring complexity and stock variety. Application: Panel boards and machine dashboards requiring two-direction control. Feature: Plug Clamp Connection → Business Impact: Faster, safer wiring with secure, tool-free termination, lowering field service time. Application: Rapid panel assembly and easier maintenance in automation environments. Feature: Glow Lamp Illumination (Lamp Type: Glow lamp) → Business Impact: Immediate status indication for machine operators, improving fault detection and operator confidence. Application: Indoor control panels where visual feedback is beneficial. Feature: IP20 Environmental Rating → Business Impact: Suitable for dry, indoor environments, enhancing reliability and lifecycle in factory settings. Application: Indoor enclosures and equipment racks subject to incidental contact. Feature: Built-In Dimensions (Width 81 mm, Height 81 mm, Depth 51 mm; Built-In Depth 17 mm) → Business Impact: Predictable space requirements and compatibility with standard DIN rail and enclosure architectures. Application: Enclosures with fixed backplane spacing and panel cutouts. The combination of RoHS/REACH compliance with CE declarations further supports regulatory alignment and end-user trust across industrial projects.
