ABB 2CHX590735A4000 Flush Mounted Inserts - IP20
Part Number: 2CHX590735A4000
Quick Summary
ABB 2CHX590735A4000 is a flush-mounted intermediate switch insert designed for control panels and enclosure mounting. Engineers often struggle with space constraints and complex wiring when integrating compact devices, but this unit uses screw fastening with a plug-clamp connection to streamline installation and reduce commissioning time. It carries CE conformity, IP20 protection, and an EU Declaration of Conformity, ensuring reliable performance in indoor industrial environments. Beyond safety, the device supports a 1-gang footprint with a single illuminated rocker, helping operators quickly confirm status while simplifying wiring. Designed for ABB EcoSolutions programs and lifecycle efficiency, it supports modularity and reuse with 3559-series components, aiding spare-part planning and resource optimization in process automation.
Product Information
Extended Description

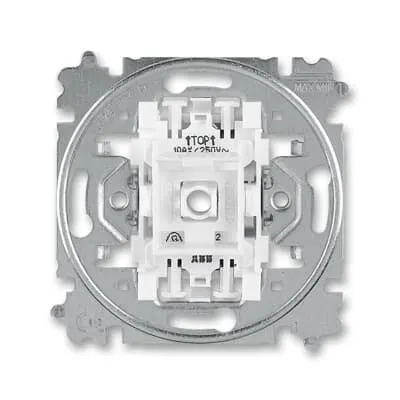

2CHX590735A4000 ABB: 3559-A07345 Switch insert intermediate, screwless 3559-A07345
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Illuminated (on)
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
43.95 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A07345
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 64 %
Material Resource Reduction (wt. %)
Design for Reduced Resource Consumption - 0 %
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Improved Energy Efficiency for Customers
Process Efficiency - Product improves/optimizes process
Extended Product Lifetime
Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD R60 Switch inserts 3559
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted mounting type integrates neatly into control panels, reducing panel recess depth and improving aesthetics. Impact: Improves enclosure density and minimizes wiring clutter, enabling faster commissioning in compact dashboards. Application: Ideal for 1-gang panel locations in machine controls where space is at a premium. Feature: Screw fastening provides secure, vibration-resistant mounting, enhancing reliability in dynamic industrial environments. Impact: Reduces risk of loose fittings and maintenance downtime, lowering total cost of ownership. Application: Suitable for equipment subject to vibration or frequent cycling in manufacturing lines. Feature: Plug Clamp wiring connection enables quick, repeatable terminations without exposed conductors. Impact: Shortens installation time and improves wiring consistency across shifts. Application: Preferred in high-mlex environments where quick field assembly matters. Feature: Rated voltage 250 V and rated current 10 A with a maximum switching current for fluorescent lamps of 10 A. Impact: Supports standard lighting and control circuits while maintaining safe operating margins. Application: Fits typical control-panel lighting and signal circuits in commercial and industrial plants. Feature: Illumination option and basic rocker actuation (1 rocker) provide clear status indication. Impact: Reduces operator errors and improves process visibility on the shop floor. Application: Useful in start/stop stations and status indicator panels used in automation lines. Feature: IP20 protection and CE conformity ensure safety and compliance for indoor use. Impact: Meets common industrial enclosure standards, facilitating regulatory approvals and maintenance planning. Application: Suitable for indoor panels in electronics, packaging, and machine automation. Feature: Built-in depth and dimensions (81x81x51 mm; built-in depth 17 mm) support compact installation. Impact: Optimizes panel real estate, allowing more components in the same enclosure. Application: Ideal for retrofit projects and new panel builds requiring tight fitment. Feature: Replaced product ID 3559-A07345 and ABB EcoSolutions alignment indicate lifecycle compatibility. Impact: Simplifies sourcing and cross-referencing within legacy and modern ABB kits, reducing procurement risk. Application: Useful for engineering teams migrating from older 3559-series inserts.
