ABB 2CHX590745A4000 Flush Mounted Inserts - Glow lamp, IP20 CE
Part Number: 2CHX590745A4000
Quick Summary
ABB 2CHX590745A4000 flush mounted inserts provide a reliable intermediate rocker switch with a glow lamp for control panels. Engineers often struggle with front-face mounting constraints and wiring errors that slow panel assembly and increase rework. This solution carries CE conformity, RoHS/REACH compliance, and WEEE support, with IP20 protection for indoor panel environments. Its compact 81 mm x 81 mm face and plug clamp connections simplify installation, reduce wiring complexity, and support a 10 A load for common machine-control tasks. By combining clear status indication with robust construction, it delivers measurable improvements in panel reliability and maintenance efficiency while aligning with European regulatory requirements.
Product Information
Extended Description

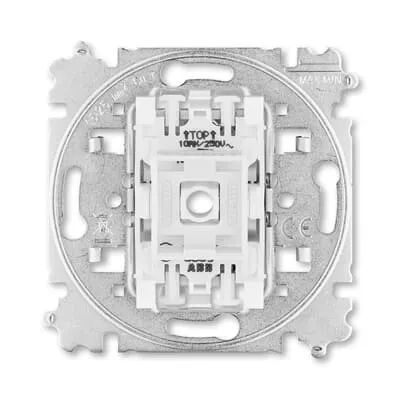

2CHX590745A4000 ABB: Rocker switch mechanism, intermediate
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
51.95 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A07445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush mounted installation and IP20 protection; Business Impact: achieves a clean panel presentation and reliable performance in typical indoor enclosures, reducing ingress risk and rework; Application: control panels in machinery and automation cabinets. Feature: 1-gang, 1 rocker switch; Business Impact: simplifies wiring and reduces fault points, speeding commissioning and service checks; Application: single-point control in machine interfaces. Feature: Wiring configuration as Intermediate switch with plug clamp; Business Impact: accelerates assembly and ensures consistent conductor terminations, lowering install time and stray wire risk; Application: multi-step control circuits in frontline automation. Feature: Glow lamp with optional illumination; Business Impact: immediate operator feedback in low-light environments, improving safety and response times; Application: status indication on front panels. Feature: RoHS/REACH compliance, CE declaration; Business Impact: regulatory readiness across EU markets, reducing compliance risk and product recalls; Application: panel builders targeting European customers. Feature: 250 V rated voltage and 10 A rated current; Business Impact: supports typical industrial lighting and control loads with margin for reliability; Application: industrial control and signaling in automation systems.
