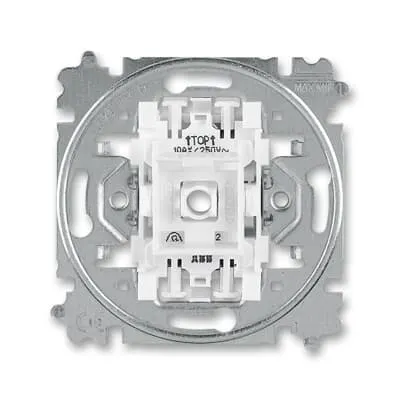

ABB 2CHX592135A4000 Flush Mounted Switch - IP20 CE
Part Number: 2CHX592135A4000
Quick Summary
ABB 2CHX592135A4000 Flush Mounted Switch is a 1-pole off switch for panel-mounted control. In tight layouts, engineers need a reliable, easy-to-wire solution that minimizes assembly time and wiring errors. This unit carries CE conformity, RoHS/REACH compliance, and an IP20 protection rating, reinforcing safety and regulatory alignment in typical factory environments. By combining a compact form with plug clamp wiring and optional illumination, it delivers tangible business value through faster commissioning, reduced field wiring mistakes, and easier serviceability in maintenance cycles.
Product Information
Extended Description
2CHX592135A4000 ABB: 3559-A21345 Switch insert 1-pole with light 3559-A21345
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Illuminated (on)
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
42.5 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A21345
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush mounted with screw fastening ensures a clean panel profile and secure installation. Business Impact: Reduces panel footprint and vibration-related wear, improving long-term reliability. Application: Ideal for control panels in packaging machines and machine guards where space is at a premium. Feature: 1-pole off switch with plug clamp wiring speeds up wiring and reduces termination errors. Business Impact: Accelerates commissioning and simplifies field maintenance. Application: Panel boards and instrumentation cabinets. Feature: Rated 250 V and 10 A with a maximum switching current for fluorescent loads. Business Impact: Supports common industrial lighting and actuator loads without overrating components. Application: Illumination control and low-power actuators in manufacturing lines. Feature: IP20 protection, 81 mm square front, and 51 mm depth with built-in 17 mm depth clearance. Business Impact: Enhanced interior protection and compact installation compatible with standard panels. Application: Panel interiors in machines, conveyors, and process equipment. Feature: Illumination option and rocker/button actuator for clear status indication. Business Impact: Improves operator awareness and reduces misoperation. Application: On/off signaling in control consoles and maintenance panels. Feature: Replacement compatibility with 3559-A21345 original design. Business Impact: Smooth migration and legacy replacement without hardware changes. Application: Upgrades in legacy ABB installations and retrofits.
Get a Quick Quote for a ABB 2CHX592135A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX592135A4000?
Enquire Now
FAQs
Installation is straightforward thanks to the flush-mounted design and screw fastening. Secure the unit in a compatible panel cutout, tighten the screws, then connect conductors using the plug clamp terminal. With a 1-pole OFF configuration and IP20 protection, it reduces stray wiring and improves vibration resistance, while the built-in depth keeps front profiles compact.
The device is rated for 250 V and 10 A, with a maximum switching current specified for fluorescent lamps at 10 A. It is a 1-pole off switch with a plug clamp connection and optional illumination. This makes it suitable for panel-mounted control of lighting or small actuators in typical industrial loads, while meeting essential safety requirements.
Yes. It supports control of lighting loads up to 250 V and 10 A in a compact, 81 mm square front footprint. The IP20 rating provides interior protection, and the optional illumination aids operator awareness. Its screw-fit installation and plug clamp wiring simplify wiring in crowded control panels and machinery rooms.
The ABB 2CHX592135A4000 is CE certified and RoHS/REACH compliant, with proper WEEE categorization and ETIM classification. It includes a CE Declaration of Conformity and RoHS/REACH information, ensuring regulatory alignment for European markets and interoperability with other components in industrial control systems.
The flush-mounted design with plug clamp wiring reduces wiring errors and commissioning time, lowering installation labor costs. Its compact footprint and compatible legacy replacement (3559-A21345) support easier retrofits and spares management. Over the life of a panel, this translates to reduced downtime, simpler maintenance, and predictable performance in routine operations.
