ABB 2CHX592145A4000 Switch - IP20, Glow Lamp
Part Number: 2CHX592145A4000
Quick Summary
ABB 2CHX592145A4000 Switch is a compact flush-mounted 1-pole off-switch for panel lighting control. In practice, wiring complexity and delayed indication can slow commissioning and hinder quick fault diagnosis in dense control cabinets. This device delivers CE conformity, RoHS/REACH declarations, and IP20 protection, supporting safe, indoor use in industrial environments. Its plug-clamp connection, 1 gang, 1 rocker, and glow lamp indicator enable clean wiring and immediate status visibility during startup. For panel builders and OEMs, the combination reduces assembly time, minimizes spare parts, and improves maintenance cycles while maintaining compliance with global standards.
Product Information
Extended Description

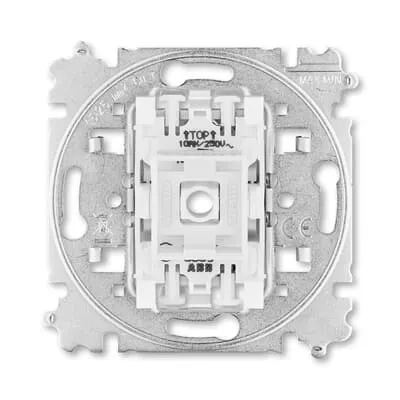

2CHX592145A4000 ABB: Rocker switch mechanism, 1gang 1way, with N terminal
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
42.2 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A21445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted Design — Benefit: Saves panel space and reduces protrusions, enhancing safety in crowded enclosures. Application: Ideal for compact control panels used in manufacturing lines. The compact footprint supports easier routing of wires in highly packed enclosures. Feature: 1 Gang 1 Way Off Switch with Rocker Mechanism — Benefit: Simplifies single-circuit control with reliable actuation. Application: Suitable for lighting circuits in machine housings where a clear on/off indicator is required. Feature: Glow Lamp Indicator (Illumination Optional) — Benefit: Immediate visual feedback during power-up and troubleshooting. Application: Facilitates commissioning and maintenance workflows in dim environments. Feature: IP20 Environmental Protection — Benefit: Interior enclosure protection against dust ingress. Application: Indoor control panels in factory settings. Feature: Plug Clamp Wiring Connection — Benefit: Faster, screw-free wiring reducing installation time and fault potential. Application: Field-wix wiring for rapid panel assembly. Feature: 81 mm x 81 mm Net Width/Height, 51 mm Net Depth, 42.2 g Weight — Benefit: Lightweight, space-efficient module enabling flexible panel layouts. Application: Retrofit projects or OEM panel builds with tight space constraints. Feature: Built-In Depth 17 mm — Benefit: Allows deeper back-pan connection without increasing overall panel depth. Application: Enclosures with limited internal depth. Feature: Compliance Suite ( CE, RoHS, REACH, WEEE ) — Benefit: Regulatory assurance and sustainable disposal planning. Application: Design-in for European OEMs and global markets.
Get a Quick Quote for a ABB 2CHX592145A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX592145A4000?
Enquire Now
FAQs
This switch is designed for 1-gang, 1-pole installations with a flush-mounted footprint. It supports mounting with claws or screws and uses a plug-clamp wiring connection, enabling quick, tool-friendly field wiring in standard control panels. It fits typical 81 mm by 81 mm faceplates found in modern enclosures.
The device uses a plug clamp wiring configuration for fast, secure connections. It is rated for 250 V and 10 A, with a maximum switching current suitable for fluorescent lighting loads up to 10 A, making it compatible with common control panel lighting circuits.
Yes, it is intended for lighting control in panels, featuring a glow lamp indicator for immediate status during power-on and operation. Illumination is optional, so you can tailor visibility to your commissioning workflow and enclosure lighting conditions.
The switch carries CE conformity with EU declarations, RoHS and REACH compliance, WEEE categorization for proper disposal, and ETIM classification EC001590 for installation switches. These certifications support compliance in European supply chains and global manufacturing environments.
The 2CHX592145A4000 reduces wiring time through plug clamps, minimizes spare parts by using a common 1-pole, 1-gang design, and offers durable operation with IP20 protection for indoor use. Lightweight construction and compact depth simplify retrofits and shorten commissioning cycles, contributing to lower total cost of ownership.
