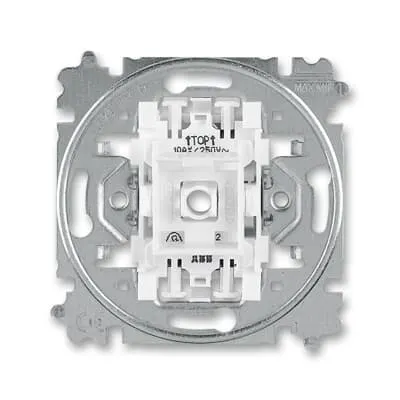

ABB 2CHX592535A4000 Flush Mounted Switch - Glow IP20
Part Number: 2CHX592535A4000
Quick Summary
ABB 2CHX592535A4000 is a flush mounted two-way switch insert that provides reliable lighting control in standard wall installations. Engineers often struggle with retrofit constraints, cramped backboxes, and inconsistent wiring when upgrading lighting circuits. This unit achieves CE conformity with RoHS and REACH declarations, carries IP20 protection for indoor use, and aligns with WEEE disposal requirements. Its compact 1-gang footprint, plug clamp wiring, and glow lamp indicator simplify installation, reduce field errors, and support scalable electrical design across residential and light commercial projects. Choosing ABB helps ensure long-term supply continuity, easier maintenance, and predictable compatibility with ETIM EC001590 class installation switches.
Product Information
Extended Description
2CHX592535A4000 ABB: 3559-A25345 Switch insert 1 gang - 2 way 3559-A25345
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Surface Finishing
Untreated
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
43.7 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A25345
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: 1-gang, 2-way wiring rated for 250 V and 10 A. Business Impact: supports typical lighting loads with a safe operating margin, reducing risk of overcurrent or nuisance tripping. Application: ideal for single-wall switch installations in apartments and small offices. Feature: Glow lamp indicator provides quick orientation in dim environments. Business Impact: improves user experience and reduces installation mistakes during night-time servicing. Application: essential in corridors, stairwells, and living areas where illumination guidance matters. Feature: Plug Clamp wiring for fast, tool-light connections. Business Impact: shortens installation time, minimizes loose connections, and lowers field service calls. Application: common in retrofit projects and new-builds where rapid commissioning is valuable. Feature: IP20 protection and compact footprint with 81 mm square faceplate and 51 mm depth. Business Impact: suitable for indoor dry locations, easy integration into standard backboxes, and neater, professional finishes. Application: residential, retail, and light commercial spaces seeking clean aesthetics and reliable performance. Feature: RoHS, REACH, CE declarations and WEEE compliance. Business Impact: reduces regulatory risk and simplifies supplier due diligence. Application: systems designed for compliant procurement and sustainable asset management.
Get a Quick Quote for a ABB 2CHX592535A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX592535A4000?
Enquire Now
FAQs
The unit is a 1-gang flush-mounted switch insert with a two-way wiring configuration and plug clamp connections, designed to fit standard backboxes used in residential and light commercial installations. Its 81 mm by 81 mm footprint and 51 mm depth ensure a snug, professional fit, while the IP20 rating supports indoor dry locations. This makes retrofits straightforward and compatible with common electrical drawings and installation practices.
This ABB switch insert carries CE conformity as noted in the EU Declaration of Conformity, along with RoHS and REACH declarations. It also aligns with WEEE disposal requirements and ETIM classification EC001590 for installation switches. These certifications help reduce regulatory risk and streamline procurement within compliant supply chains.
The plug clamp connection enables faster, tool-light wiring with secure, repeatable terminations. It reduces the likelihood of loose connections and field errors, which translates to shorter commissioning times and fewer service calls. This is especially beneficial in retrofit projects where time and accuracy are critical.
Yes. The 1-gang, 2-way switching design rated for 250 V and 10 A supports common indoor lighting circuits found in small offices, retail spaces, and other light commercial applications. Its compact build, glow indicator, and robust mounting make it suitable for panel-ready walls and high-usage areas where dependable operation matters.
Choosing ABB provides a durable, standards-aligned solution with RoHS/REACH CE compliance and WEEE readiness, which simplifies compliance and asset disposal. The 1-gang, plug clamp design reduces wiring time and maintenance overhead, while the compact footprint and reliable IP20-rated enclosure minimize retrofit labor and future upgrade risks, delivering predictable total cost of ownership in both new builds and renovations.
